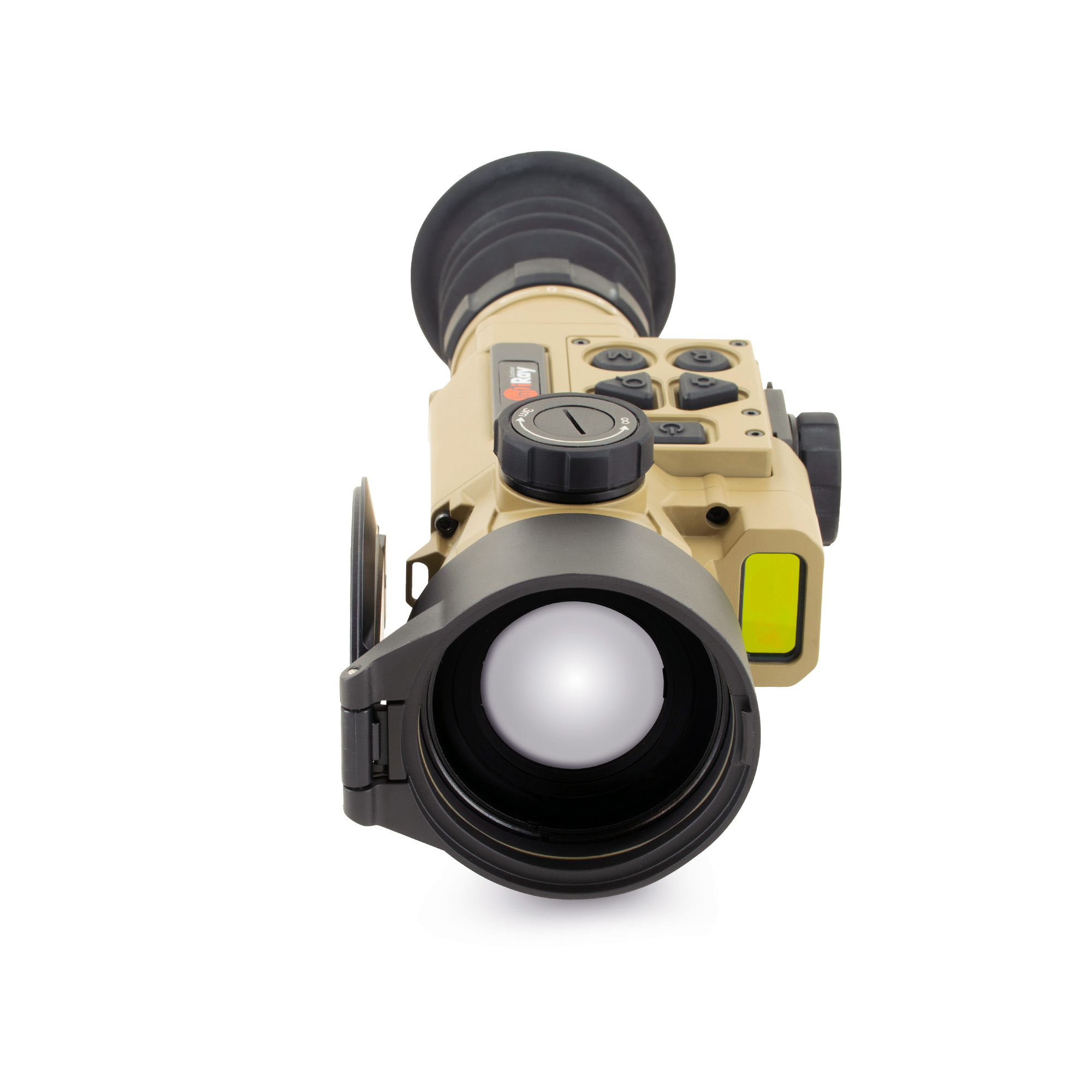

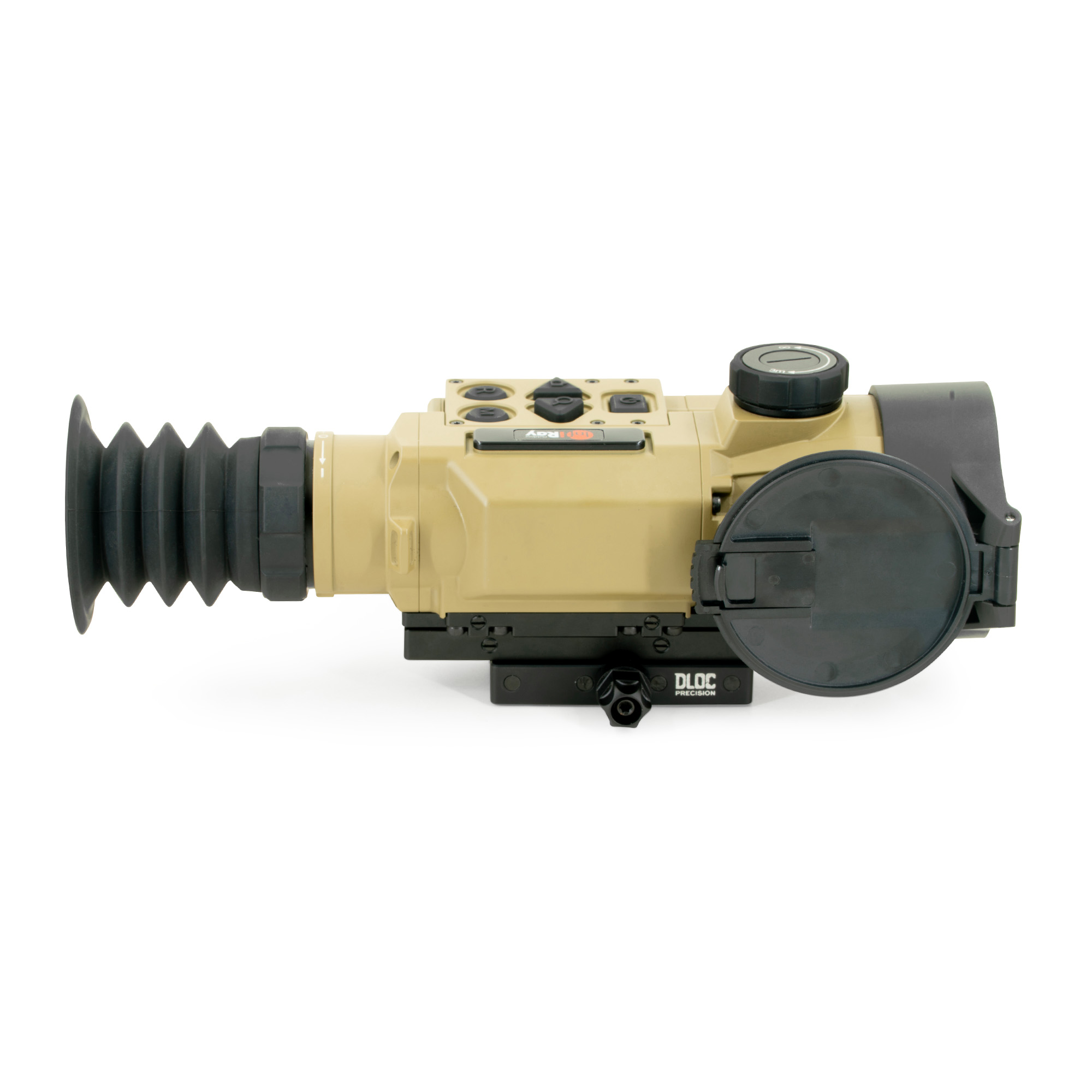

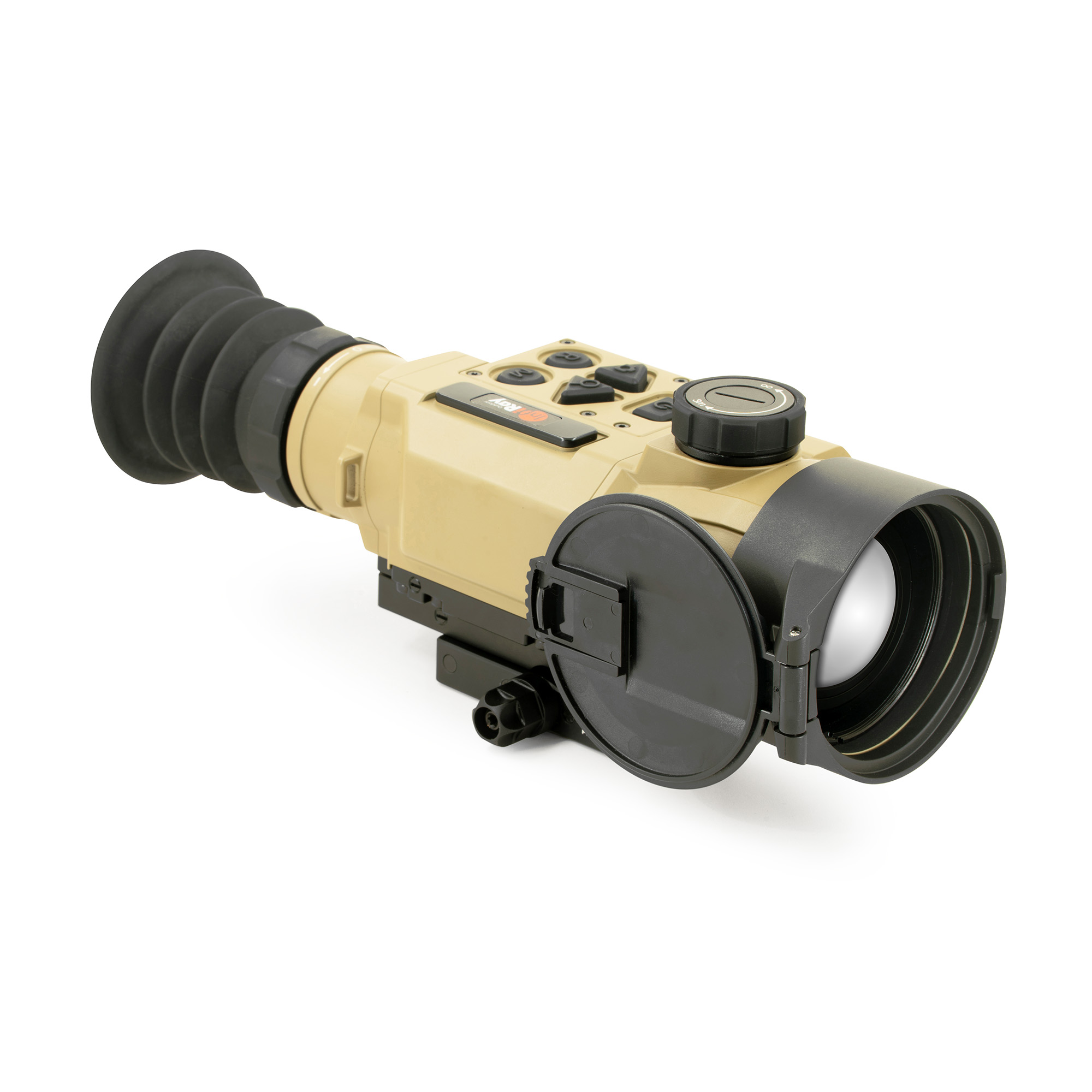

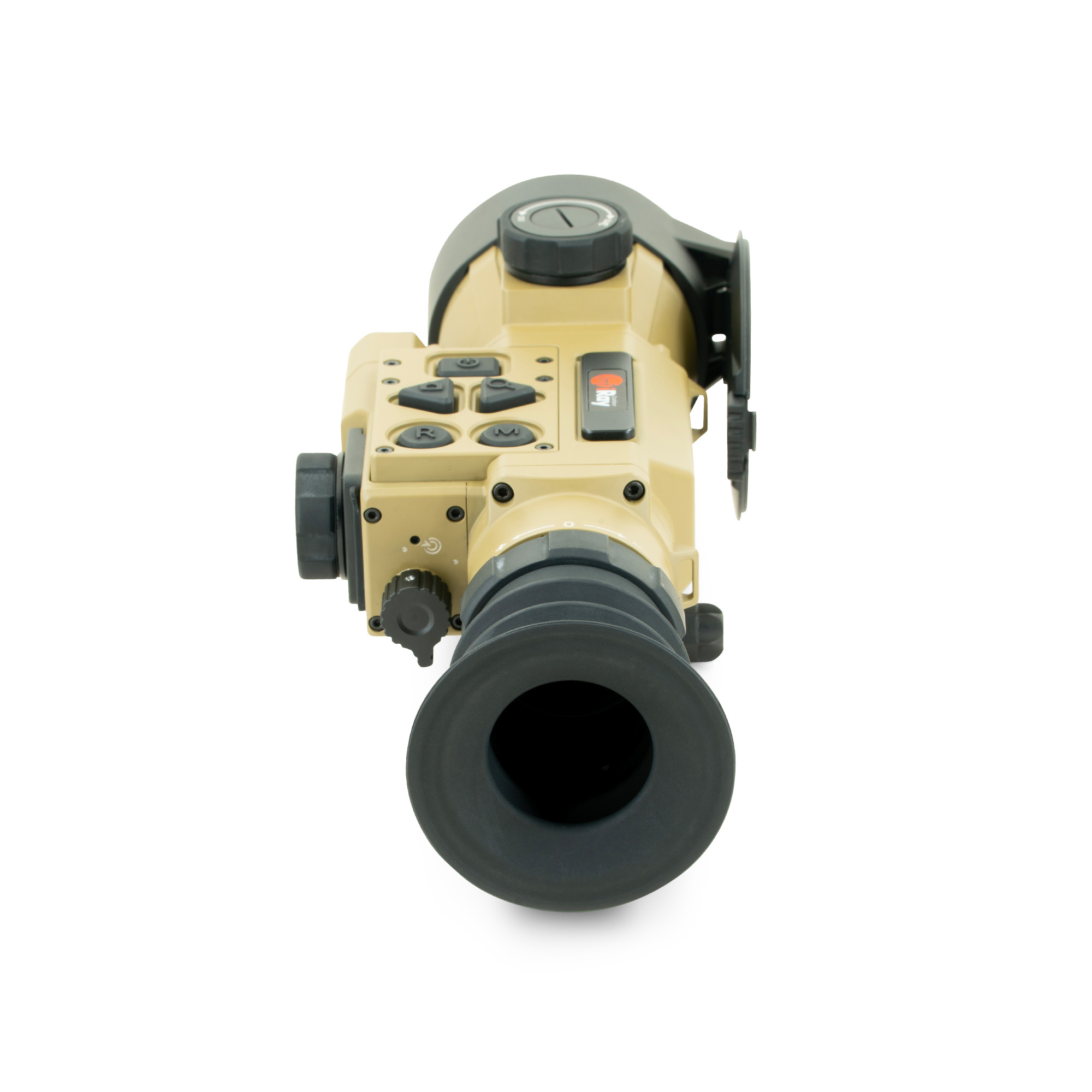

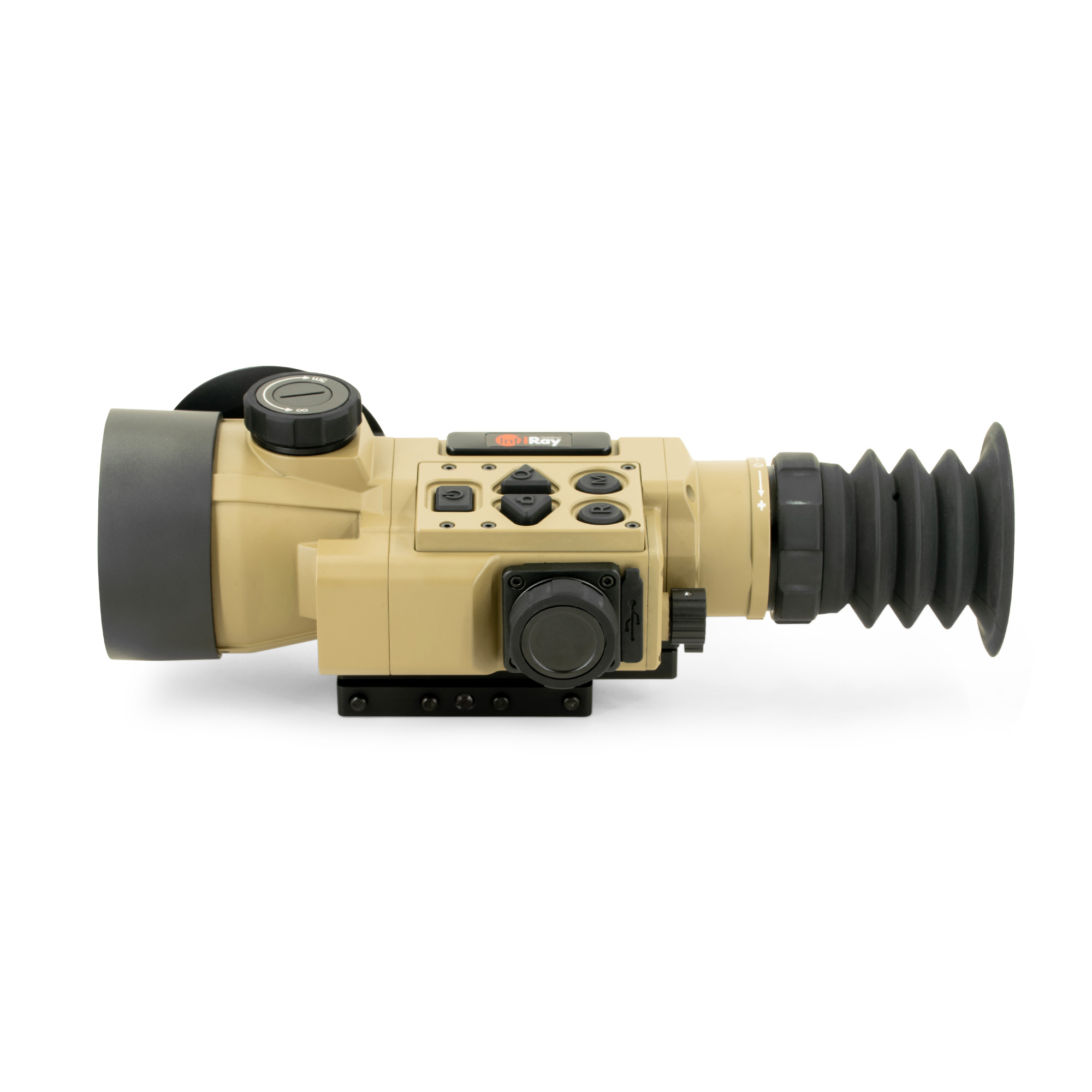

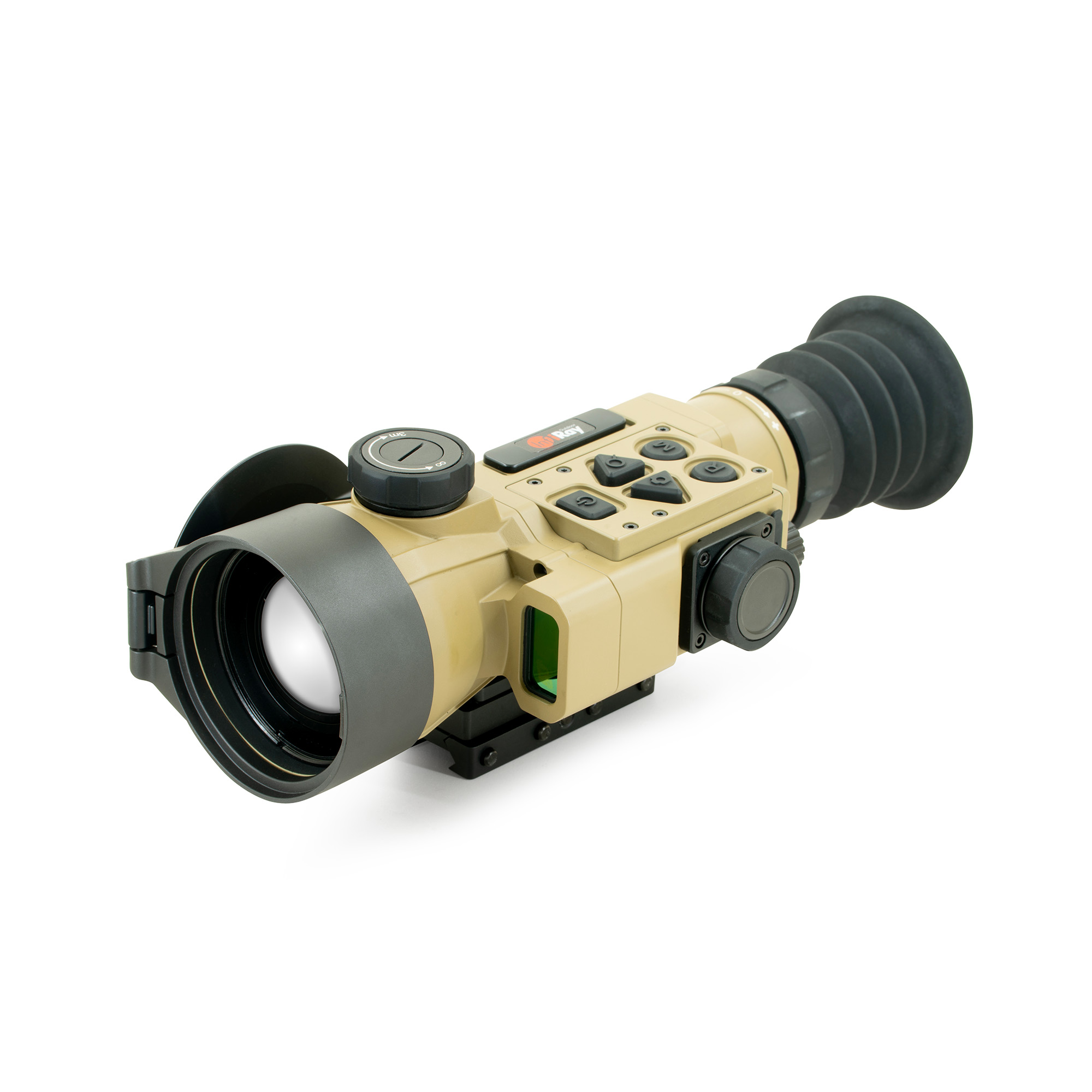

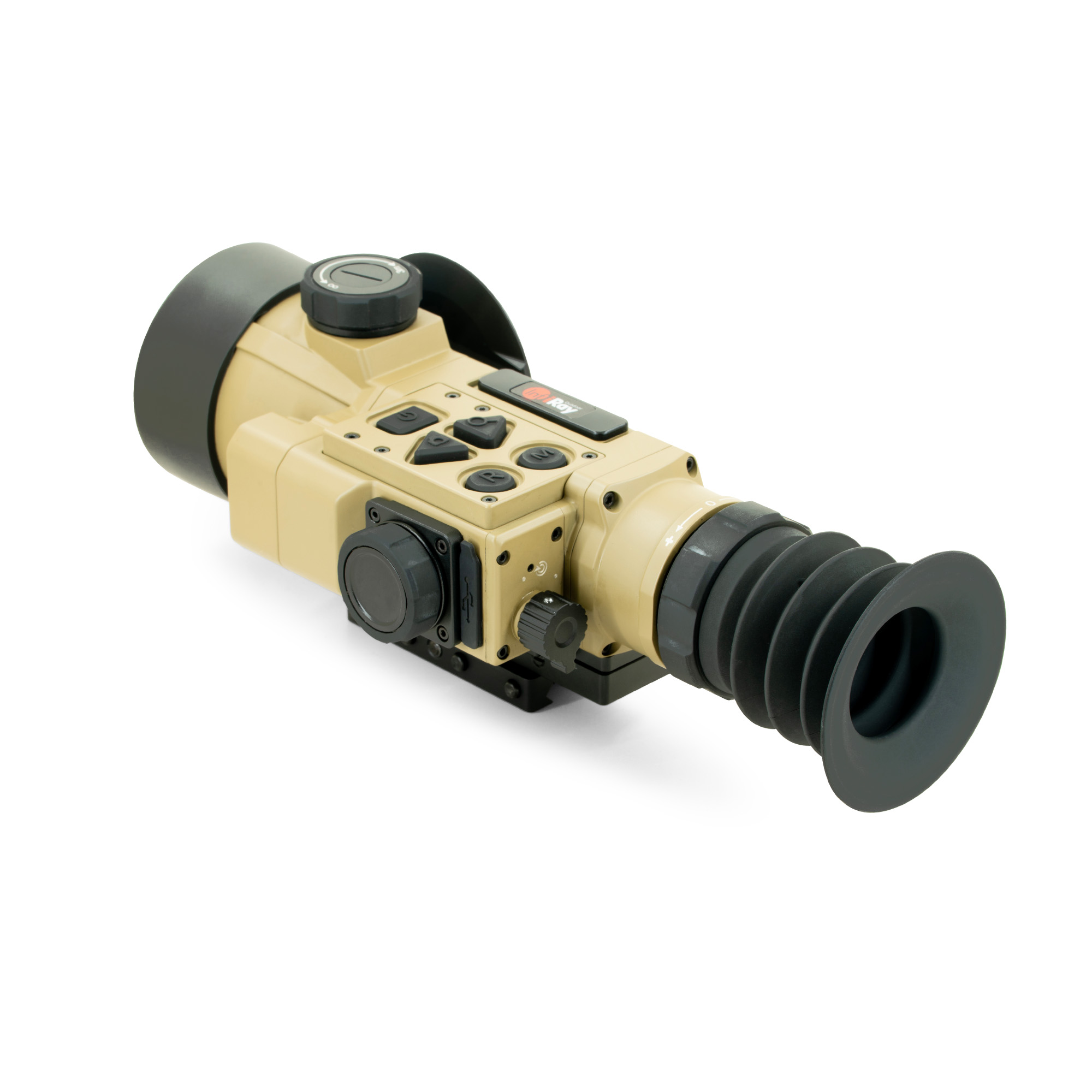

InfiRay Outdoor Hybrid Compact 3.5x 640×480 LRF 50mm (HCH50R)

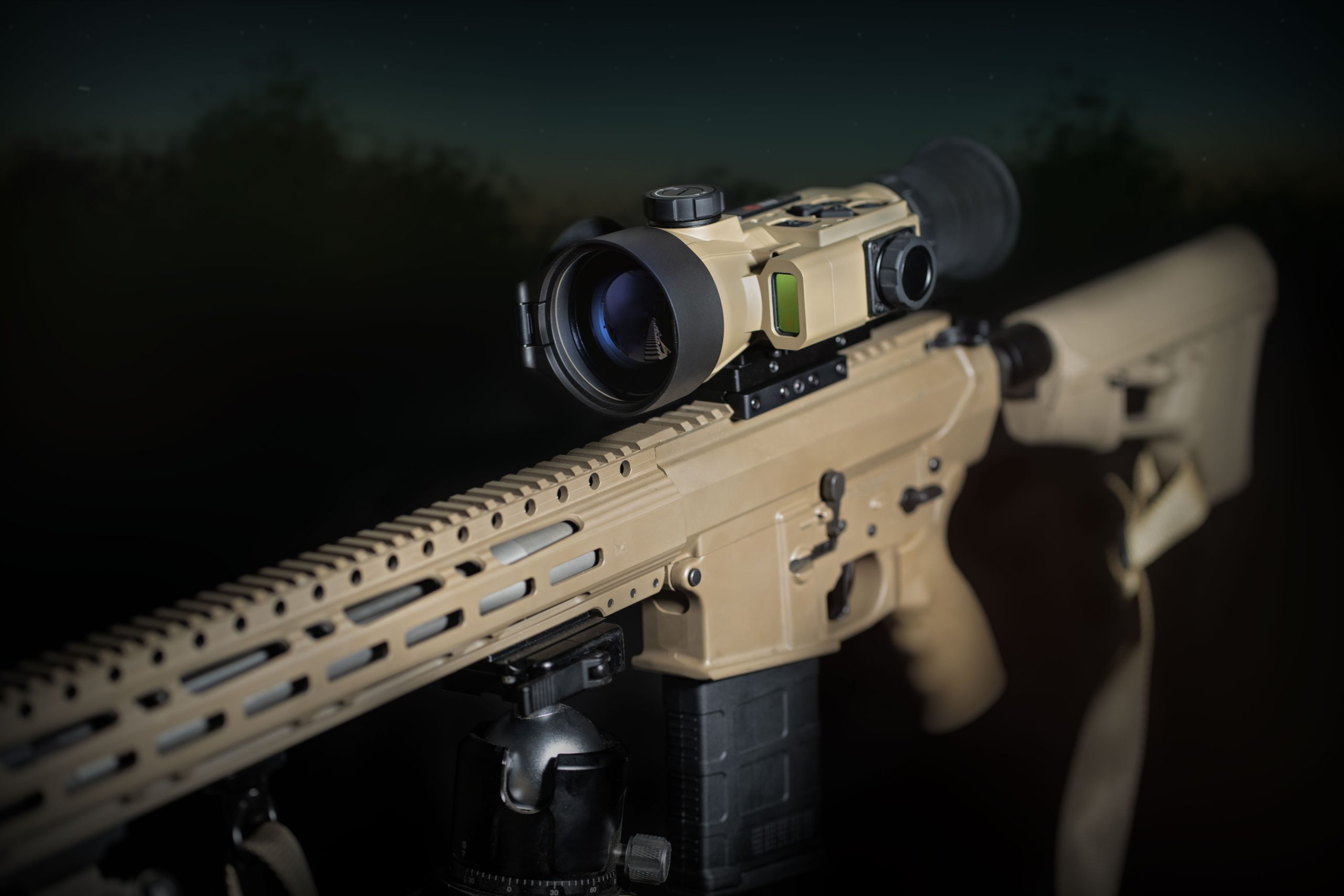

The Hybrid Compact Thermal (HCH50R) is the next evolution of the HYBRID series, combining advanced thermal performance with versatile functionality. It features a 50 mm F/0.9 lens and the industry’s first available 10 µm thermal sensor. The 640×480 InfiRay sensor with a ≤15 mK NETD rating delivers exceptional thermal sensitivity and clarity. The Hybrid Compact functions as a weapon sight, thermal clip-on, or handheld monocular. Its 3.5x native magnification and 60 mm eye relief provide a comfortable, immersive view. The “Fast Engine” low-latency architecture (15 ms) and 60 Hz refresh rate ensure a smooth, life-like image, improving target tracking and accuracy. A 1440×1080 AMOLED display provides a crisp image, while the integrated laser rangefinder and ballistic calculator adjust for drop based on target distance. Built-in photo and video recording with 64GB of internal storage lets you capture every detail.

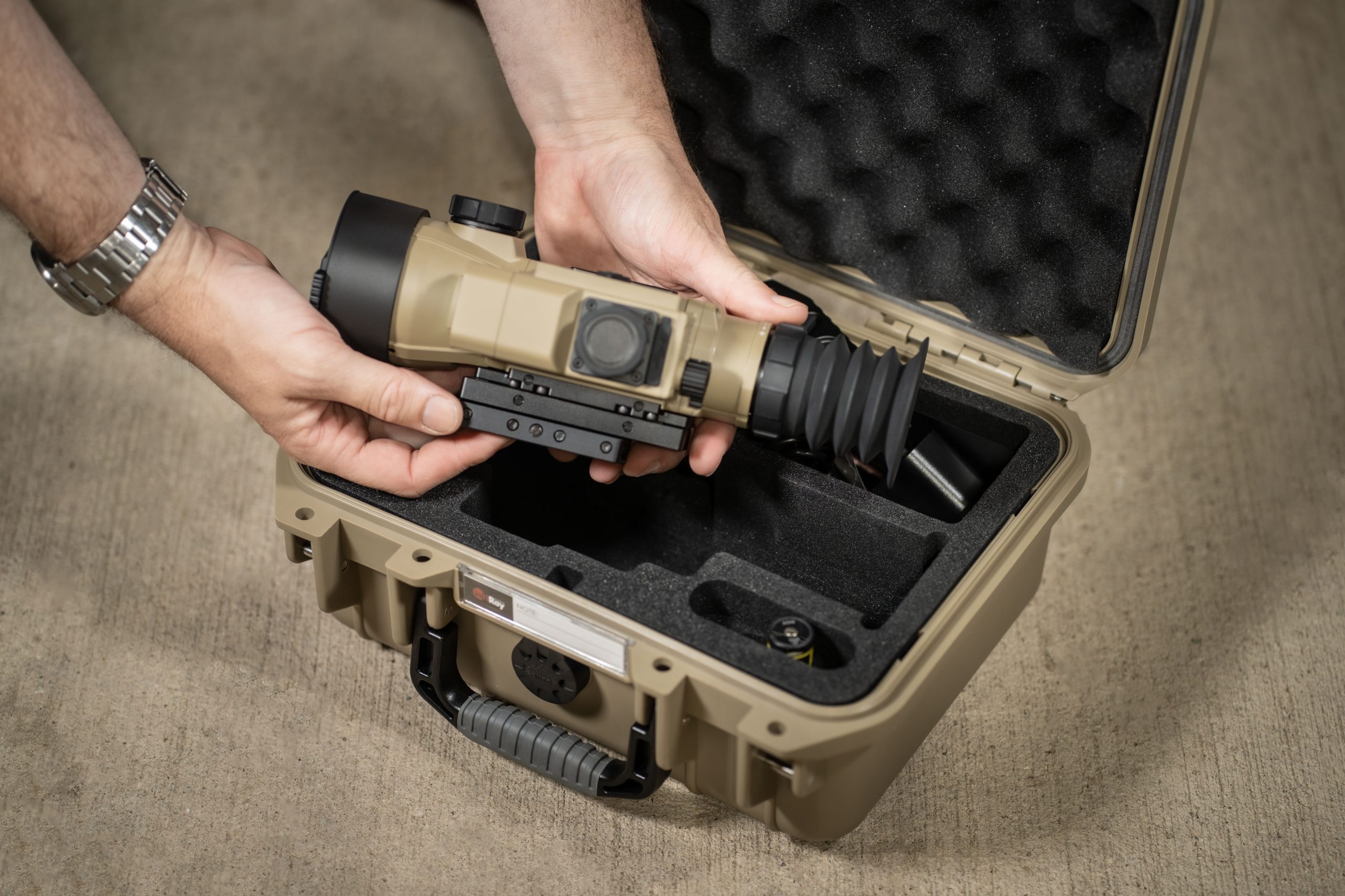

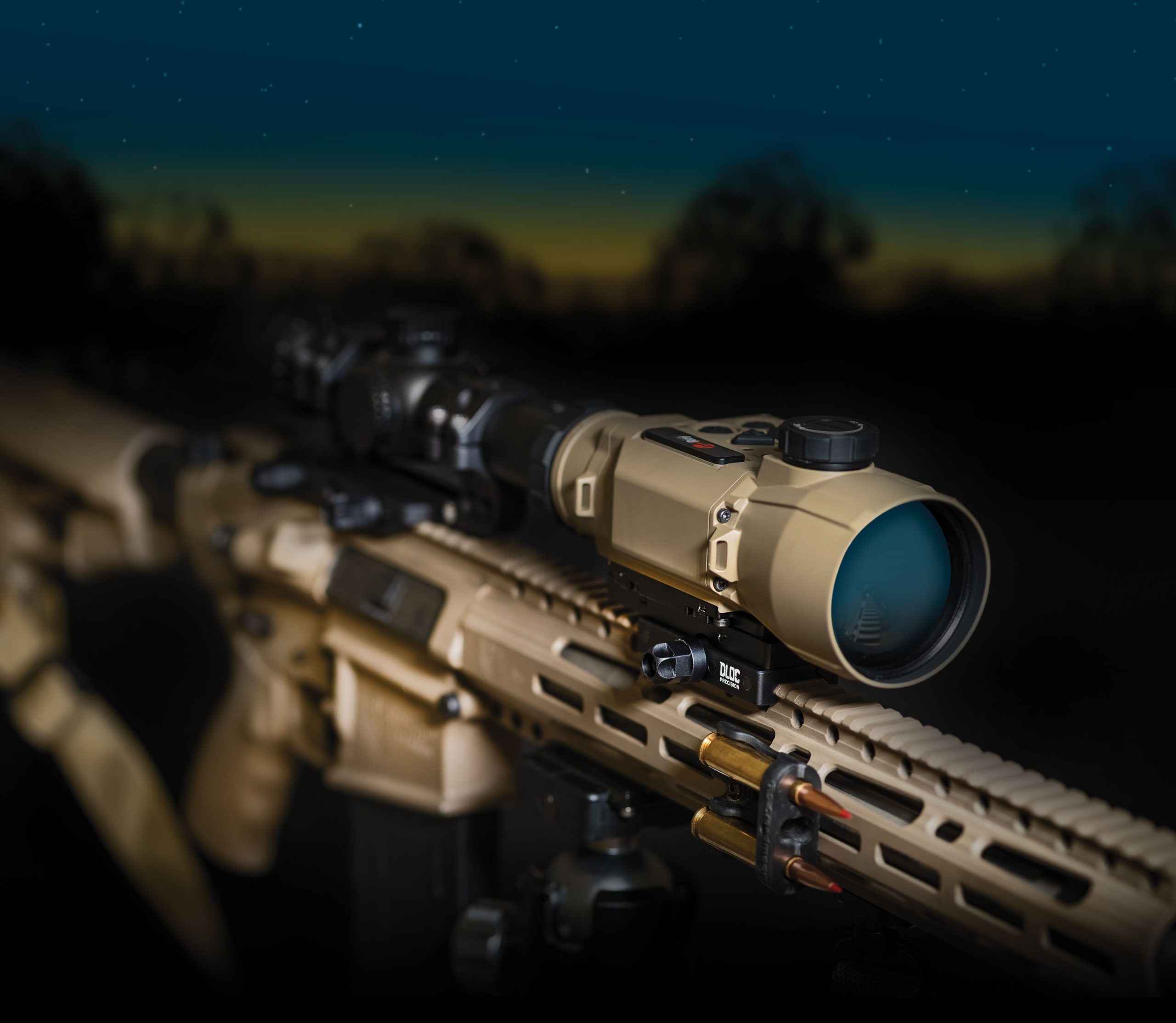

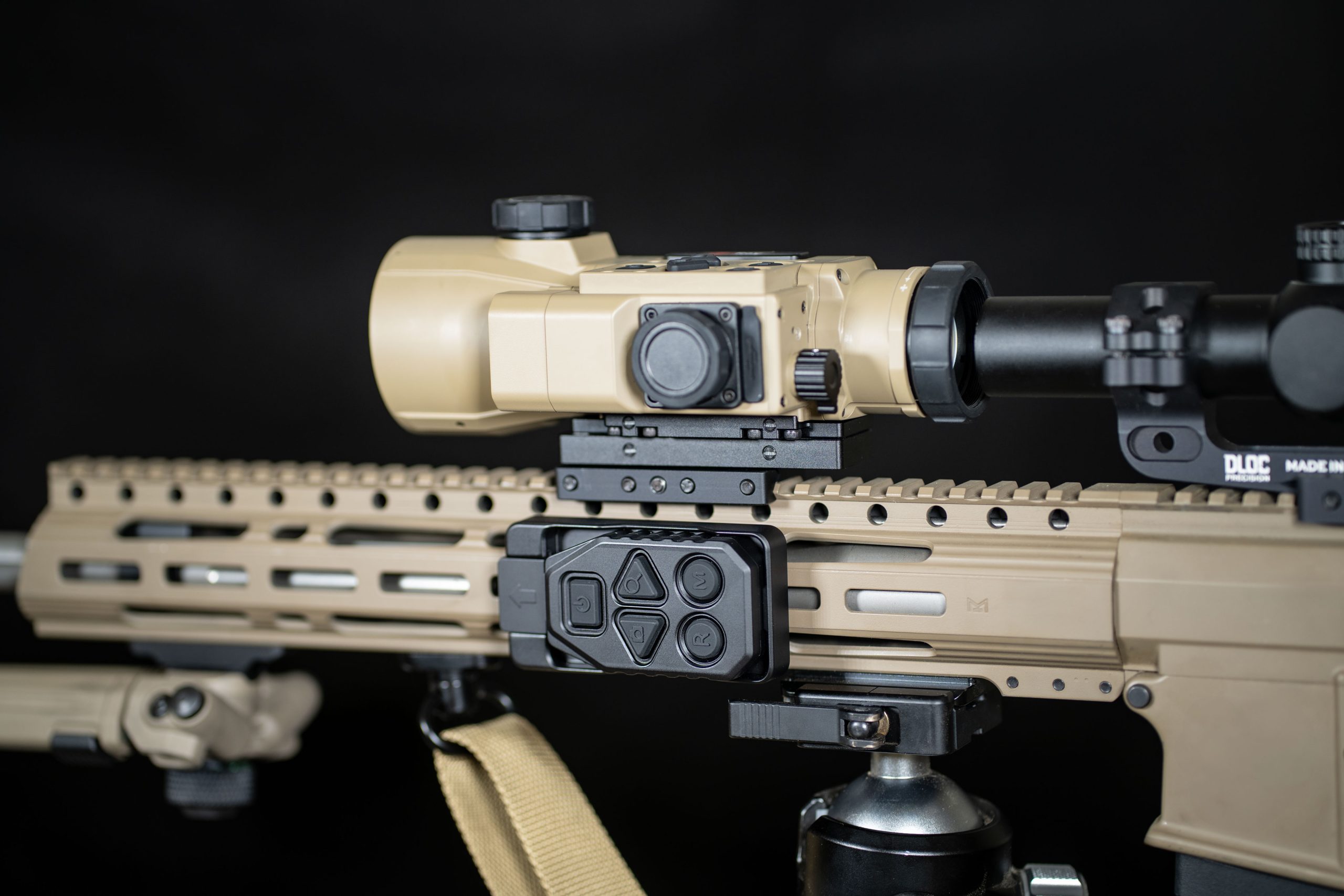

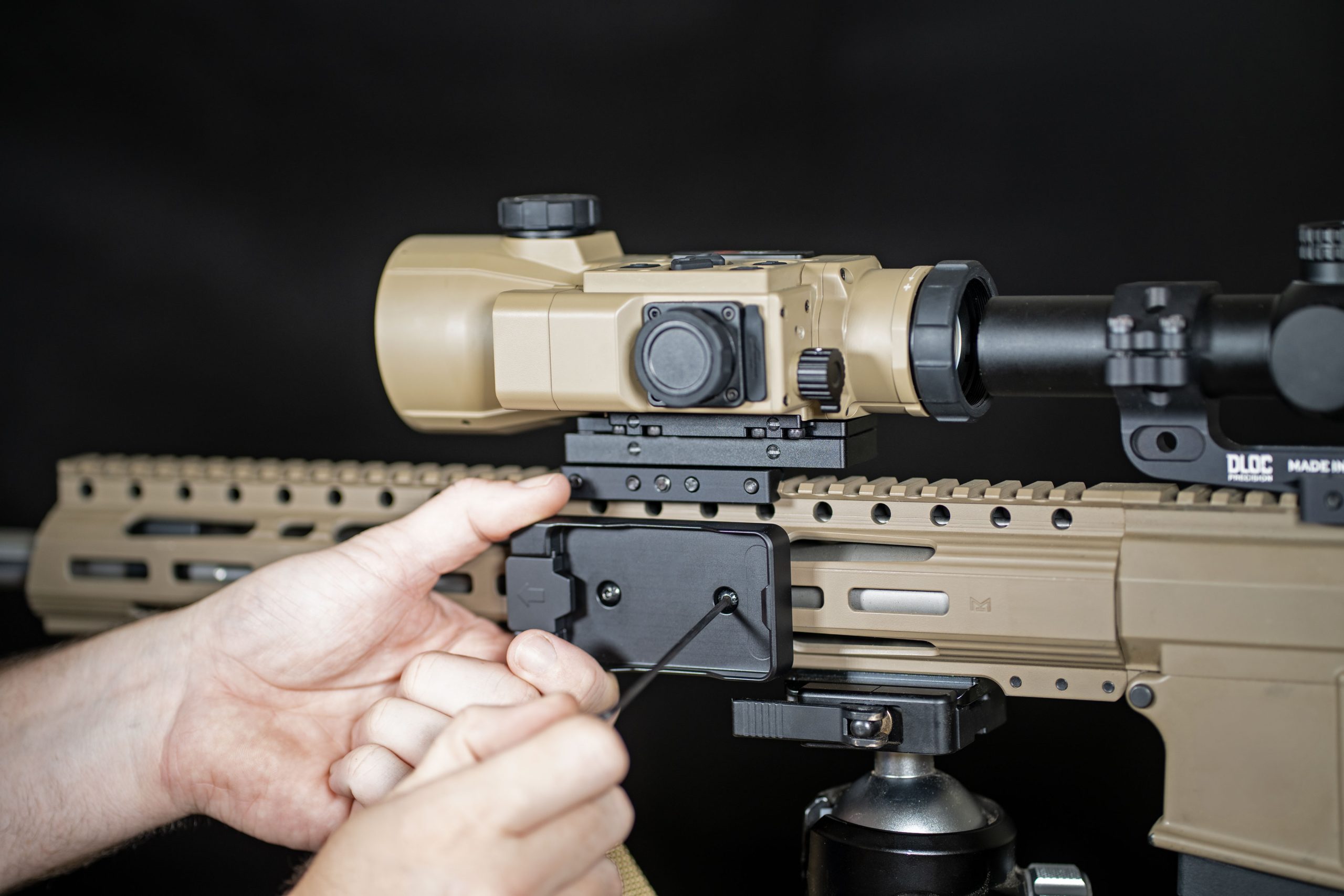

Like other HYBRID series models, the HCH50R can be used as a clip-on thermal (with day scope magnification up to 10×) or as a dedicated thermal weapon sight. The industry’s first available 10 µm sensor increases pixel density by 44%, providing high resolution while reducing the unit’s overall size. Powered by a 18650 cell rechargeable battery, the HCH50R includes a Bluetooth remote for seamless clip-on control and a secure DLOC Picatinny rail mount for quick, repeatable attachment. The HCH50R comes with a durable hard case for reliable protection in the field.
Hybrid Compact Thermal 3.5x 640×480 LRF 50mm Optics
- Objective Focal Length: 50mm
- Detection Range: 3060 Yards
- Optical Magnification: 3.5X
- Display Type: AMOLED
- Eye Relief: 60mm
- Digital Magnification: 8X Diopter Range: -5 to +5
- Vertical Angular Field of View: 5.5°
- Horizontal Angular Field of View: 7.3°
- Focusing Mechanism: Manual Focus
- Objective F#: 0.9
- Objective Diameter: 50mm
- Objective Lens Material: Germanium
- Display Resolution: 1440×1080
Hybrid Compact 3.5x 640×480 LRF 50mm Features & Performance
- Startup Time: <10 Seconds, Instant from Standby
- Rangefinder: Integrated 1200 yd LRF
- Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Picture-in-Picture: Yes
- Storage Capacity: 64GB
- Connector Output: Power/Data
- User-Updatable Firmware: Yes
- Mobile App: Yes
- One-Shot Zero: Yes
- Stand-by Mode: Yes
- Warranty: 5 Years
- Run Time: 7+
- Power Source: USB-C External, 18650 Battery
- Reticle: 8 (7 Static, 1 DIY)
- Connector Type: USB-C
- External Power Source: USB-C
- Country of Manufacture: China
- Wifi: Yes
- Onboard Recording: Yes
- Image Capture: Yes
- Video Output: Yes
Environmental Specifications
- Operating Temperature Range: -4°F~122°F
- Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
- Ingress Protection: IP67
Physical

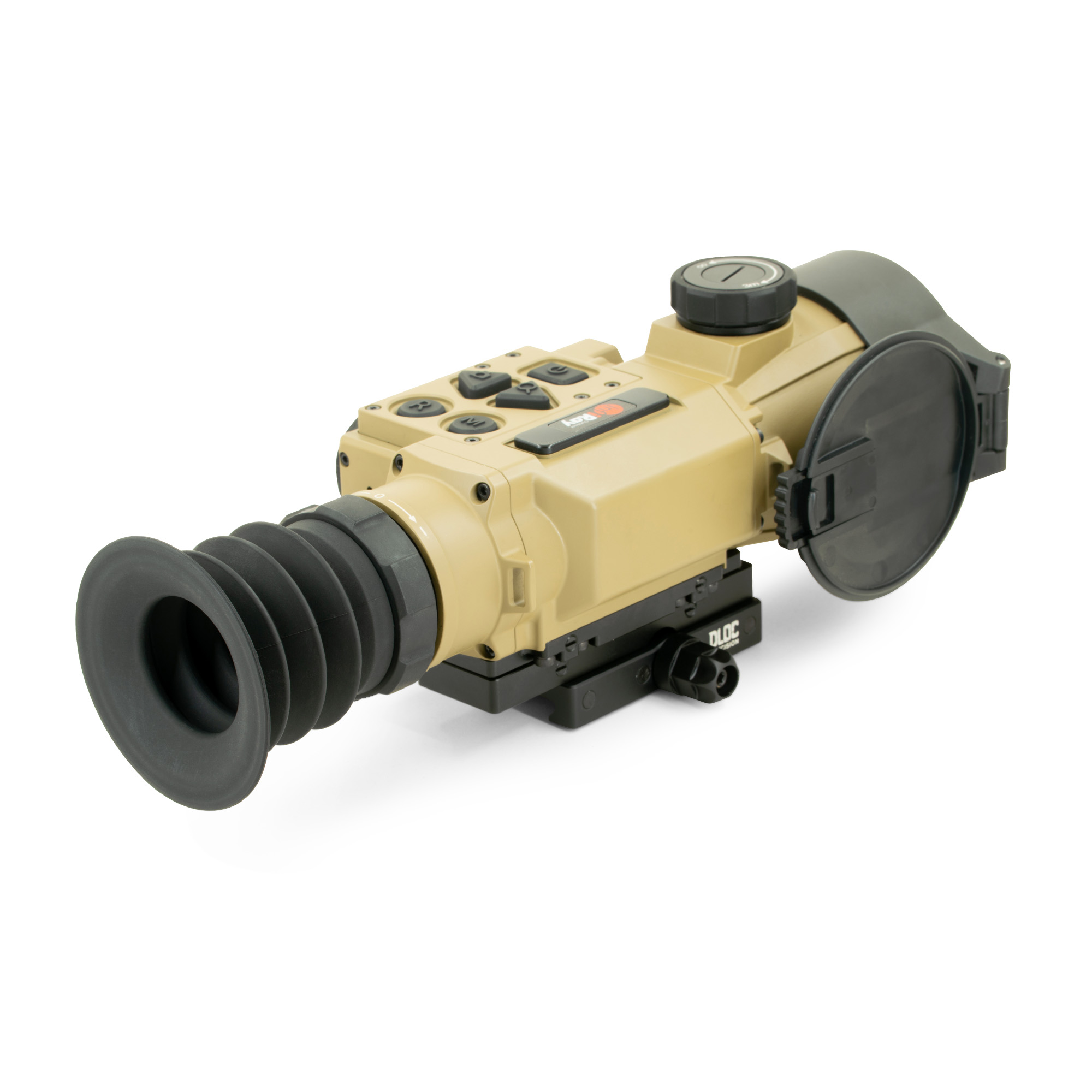

- Mounting Interface: DLOC
- Housing Material: Magnesium Alloy
- Weight: 25.56
- Height: 3.07
- Width: 4.05
- Length: 9.87
Hybrid Compact 3.5x 640×480 LRF 50mm Sensor Specifications (HCH50R)
- Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
- Device Technology: Thermal Imaging
- Sensor Resolution: 640×480
- Sensor Type: InfiRay MICRO II
- Sensor Pixel Size: 10μm
- Thermal Sensitivity: <15mk
- Sensor Frame Rate: 60hz/30hz
