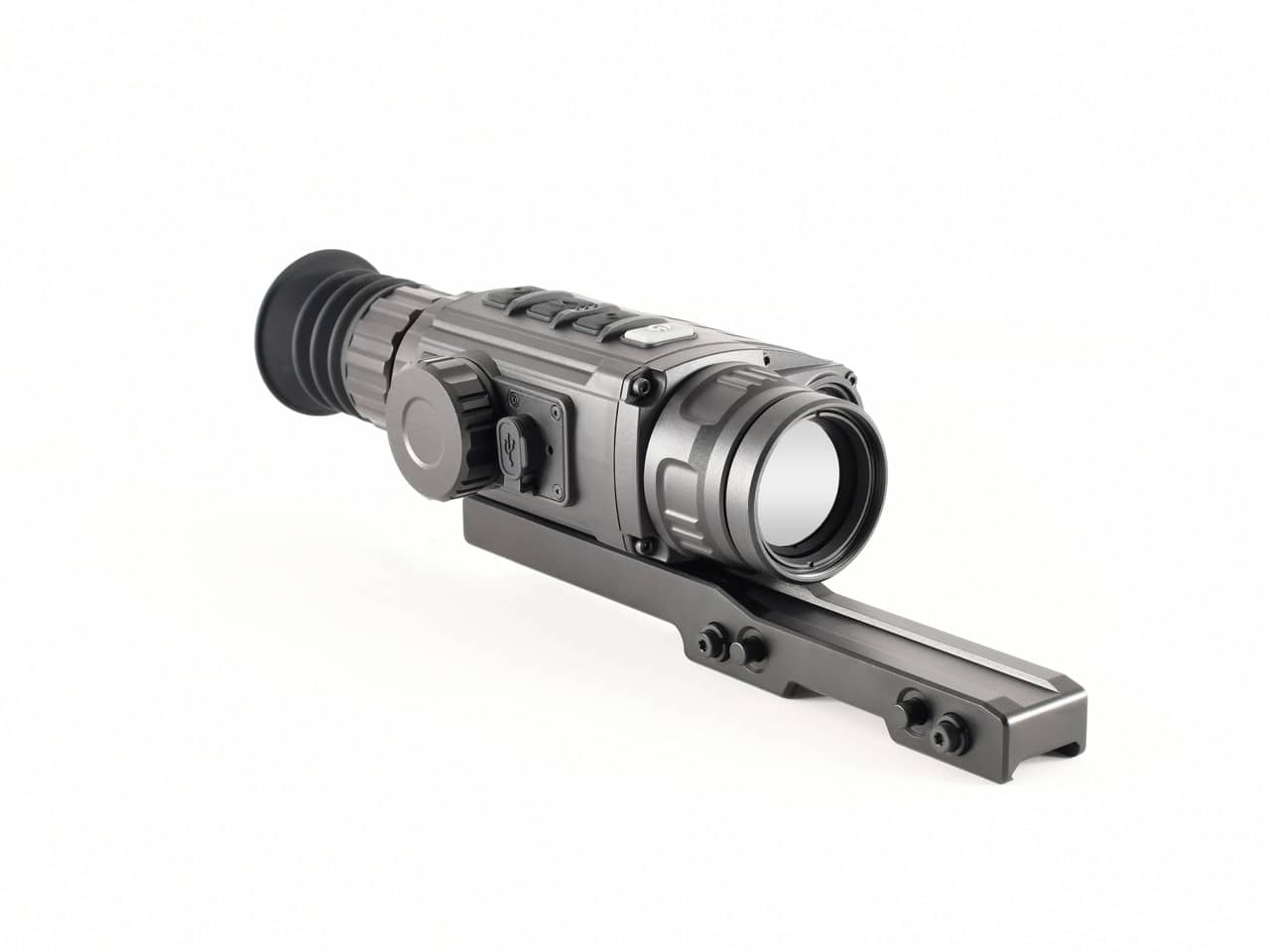

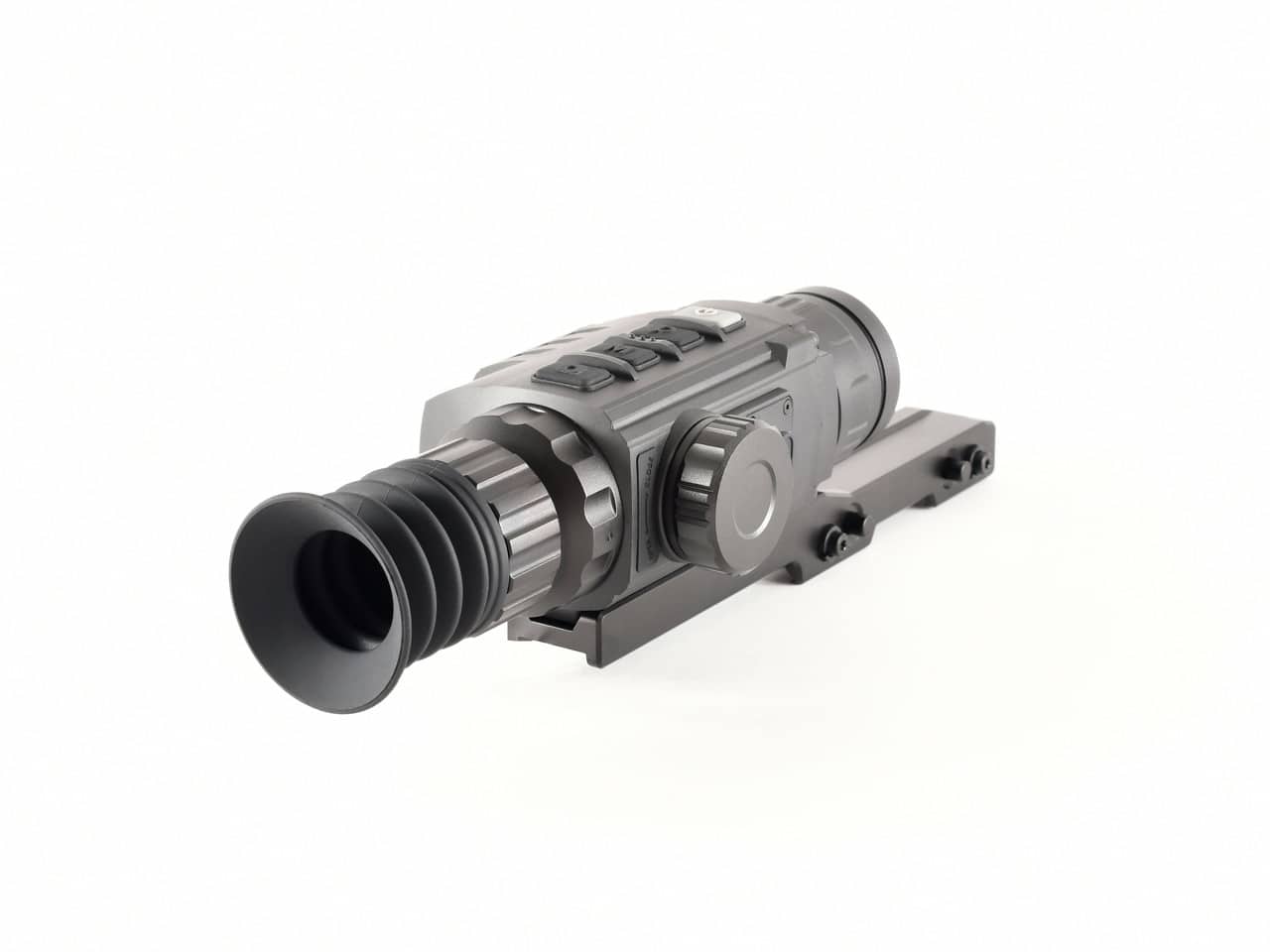

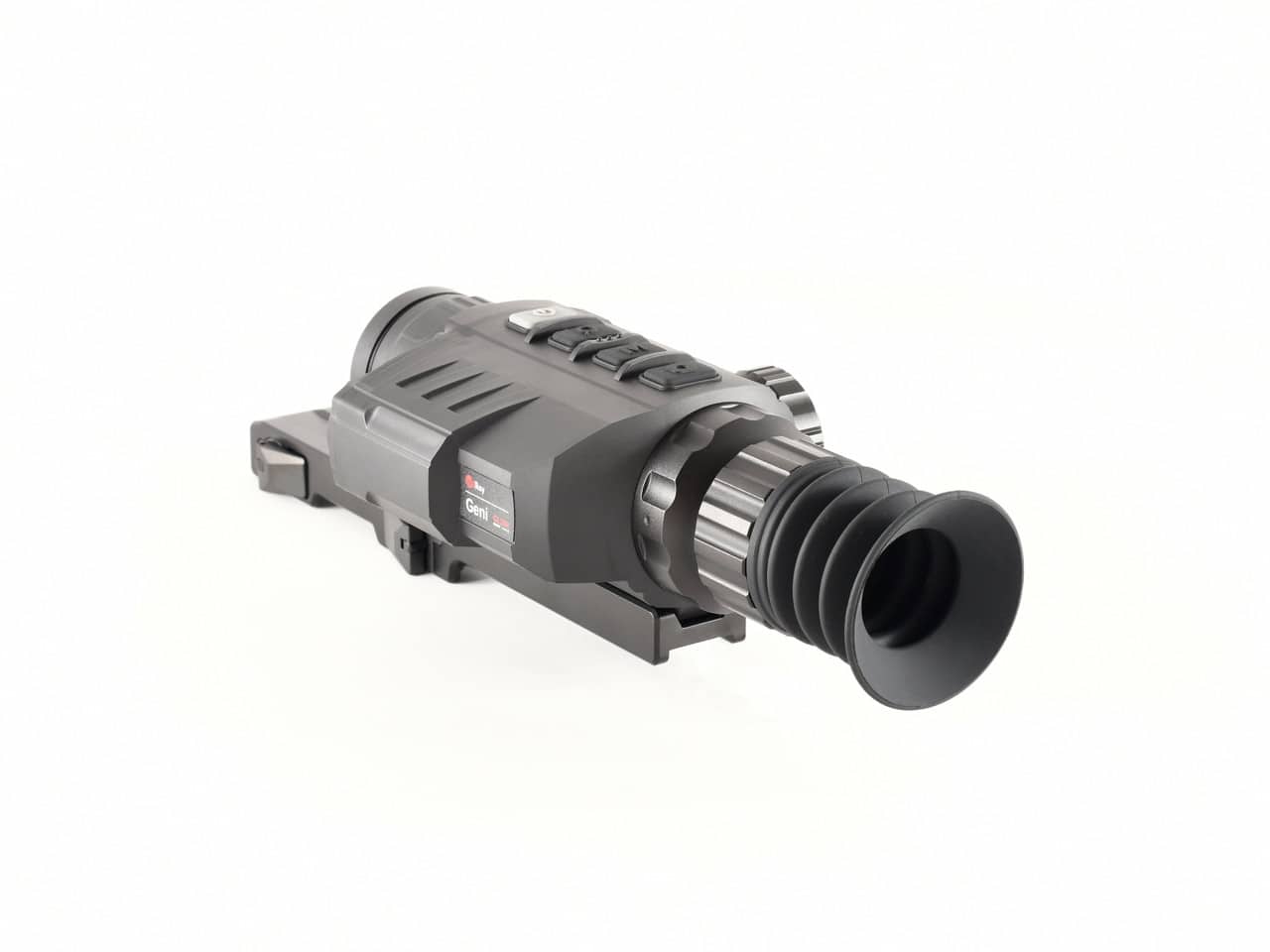

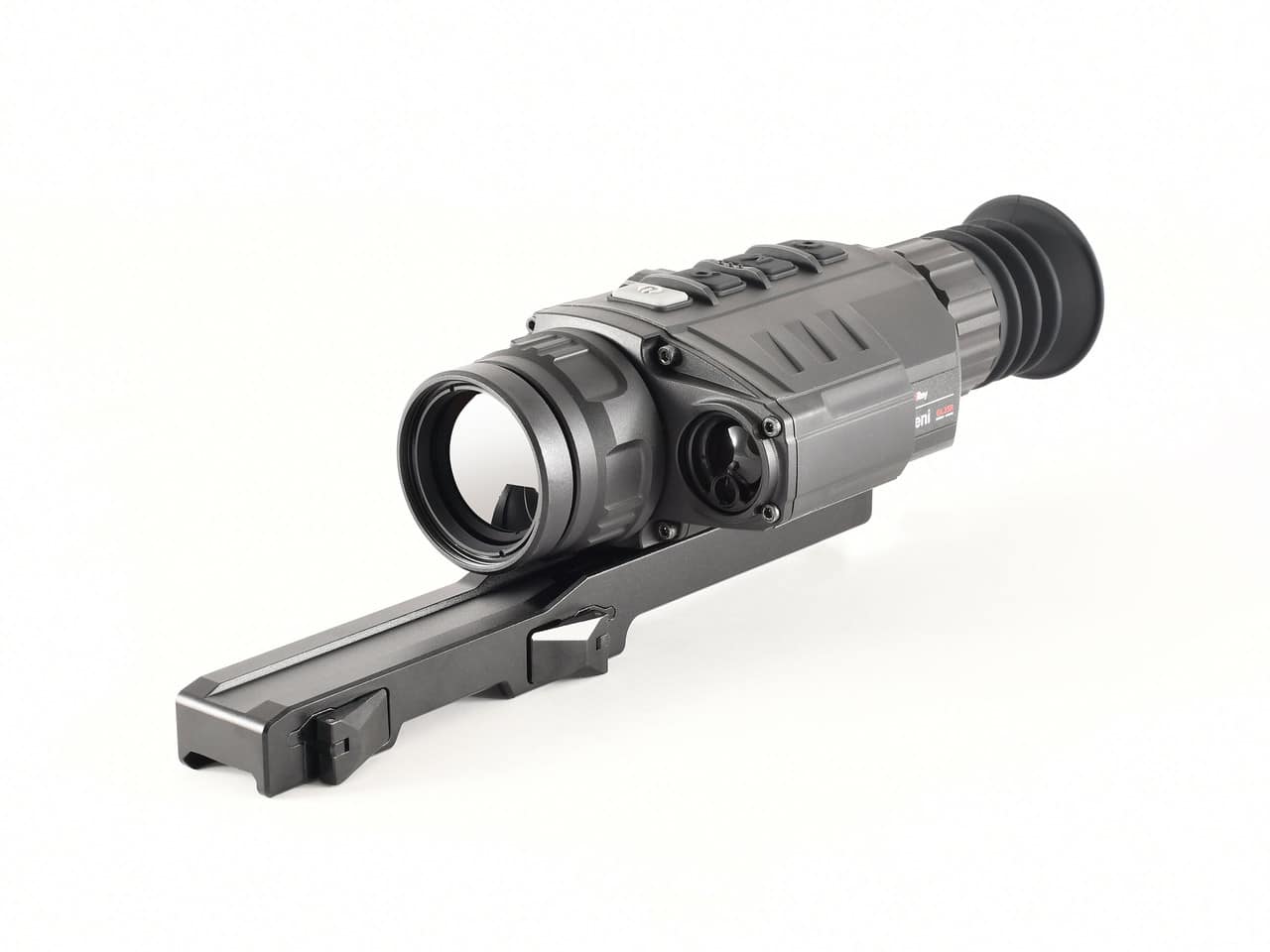

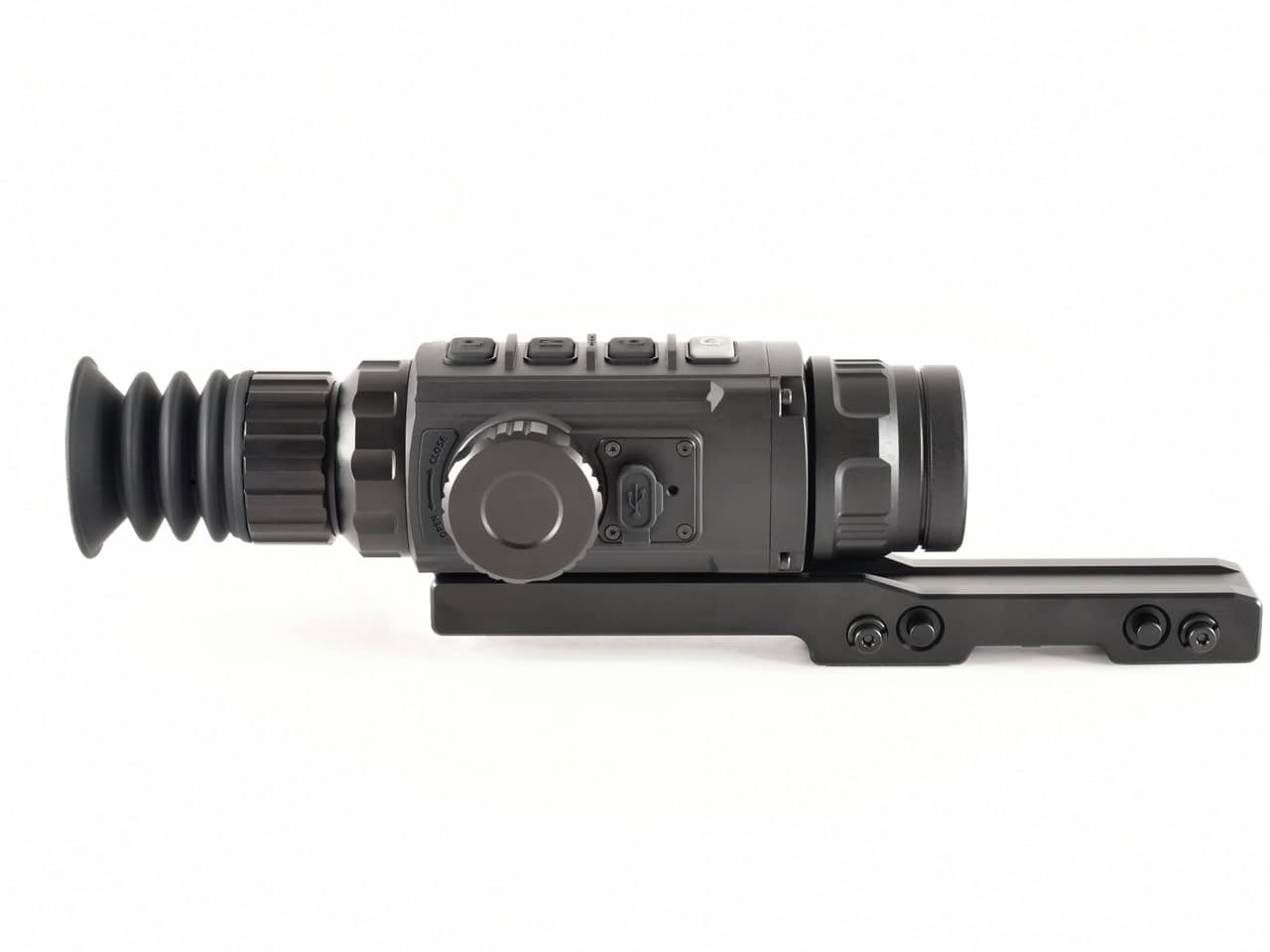

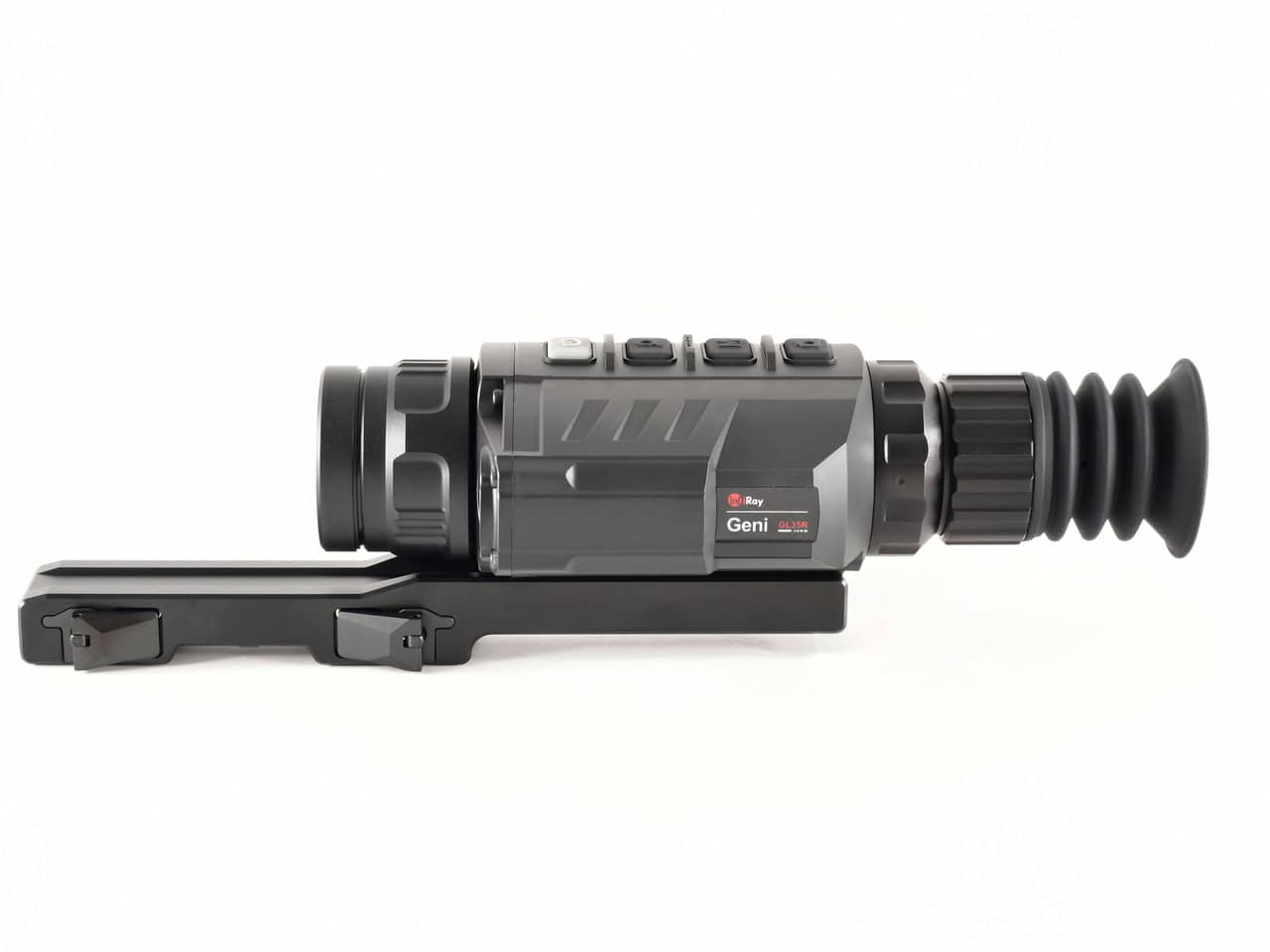

InfiRay Outdoor RICO G-LRF 384 35mm Thermal Weapon Sight
(3-12x magnification and 1,750 yards of detection!)
Michigan residents please call and we will pay your sales tax! (No tax charged for other states if placing order on website.) (855) 766-4364
5-Year Full Manufacturers Warranty!
The RICO G-LRF is the first addition to InfiRay Outdoor’s family of Rugged Infrared Compact Optics(RICO) to include an integrated laser rangefinder. Designed as a more compact and affordable alternative to it’s full size RICO Mk1 counterpart. The RICO G-LRF is available in two models; 384×288 35mm and 640×480 50mm.
Although smaller in size, the RICO G-LRF still maintains many familiar RICO Mk1 characteristics including a 4 button layout, compatibility with the AD-RQD quick release mount, similar software style and menu functions, high speed germanium objective optics, and an HD OLED display. In addition to the features it carries over from the Mk1, the G-LRF brings never-before-seen features to market for InfiRay Outdoor including a new high density 26650 battery configuration, and InfiRay Outdoor’s newly integrated high performance 905nm LRF micro-module. This advanced class 3R LRF module uses the latest technology in laser ranging to decrease physical laser input receiver size while maintaining accuracy and range capabilities of modules that are much larger, heavier, and more power hungry.
Other notable design characteristics to achieve the desired smaller stature are a smaller chassis, shorter eyepiece focal length, barrel-style manual focus objective optics, and a high density battery configuration. All these features combined make the RICO G-LRF an excellent option for hunters that need no more than 4(GH50R) or 7(GL35R) hours per battery swap and require decreased size and a integrated rangefinder. A single 26650 battery was chosen to power the system as a space saving and high value alternative to multi battery designs. 26650 style batteries are commercial off the shelf and widely available across the globe from premium battery manufactures.
The RICO G-Series LRF seamlessly blends InfiRay Outdoor’s industry-leading 12μm detector technology; a built-in laser range-finding module and an intuitive user interface in a single product. The G-Series LRF also supports image and video capture, wireless data transmission, electronic compass, multiple reticles, and a 4-7 hour run-time, guaranteeing it’s never been easier to detect, range, and connect on your next hunt.
Features & Performance:
- Onboard Recording: Video and Image
- Warranty: 5 Years
- Rangefinder: Class 3R Laser
- Picture-in-Picture: Yes
- Reticle: 7 (2 Dynamic, 5 Static)

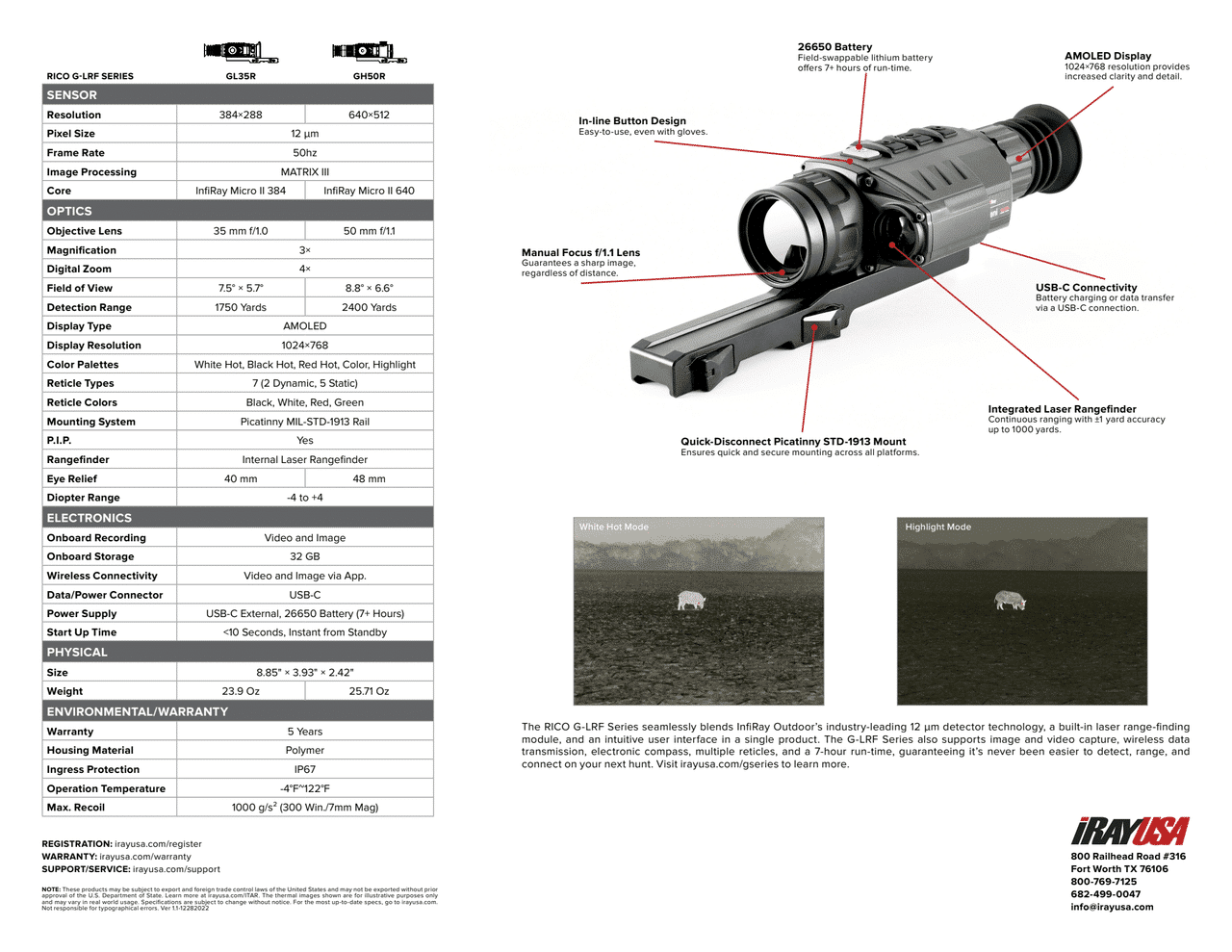

RICO G-LRF 384 35mm Optics:
- Objective Focal Length: 35mm f/1.1
- Display Type: Micro OLED
- Eye Relief: 40mm
- Digital Magnification: 4X
- Optical Magnification: 3X
RICO G-LRF 384 35mm Sensor Specifications:
- Sensor Resolution: 384×288
- Sensor Type: InfiRay MICRO II
- Sensor Pixel Size: 12μm
- Thermal Sensitivity: <50mk
- Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
- Spectral Response: 8-12 Microns
- Sensor Frame Rate: 50hz
- Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
- Ingress Protection: IP67
- Housing Material: T-6061 Aluminum
