InfiRay Outdoor BOLT TH50C V2 Thermal Riflescope (Free LRF, Batteries and Charger included!)

(1 customer review)

Original price was: $6,050.00.Current price is: $5,499.00.

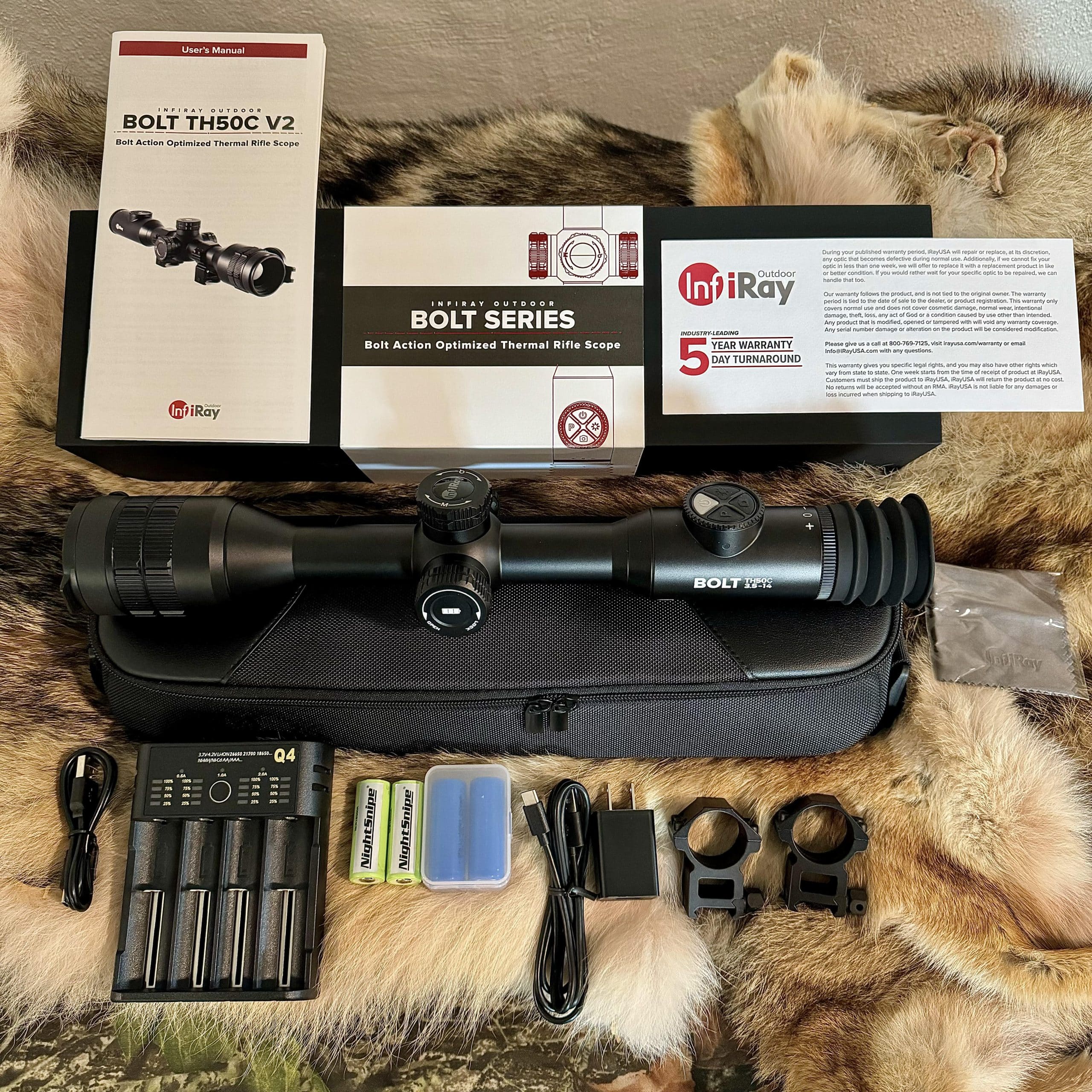

Free ILR-1200 Laser Rangefinding Module for InfiRay Outdoor BOLT (AC80), 2x Free additional NightSnipe 18500 Rechargeable Lithium Batteries and Charger Included!

Michigan residents please call and we will pay your sales tax! (No tax is charged for other states if placing an order on the website.) (855) 766-4364

3 in stock

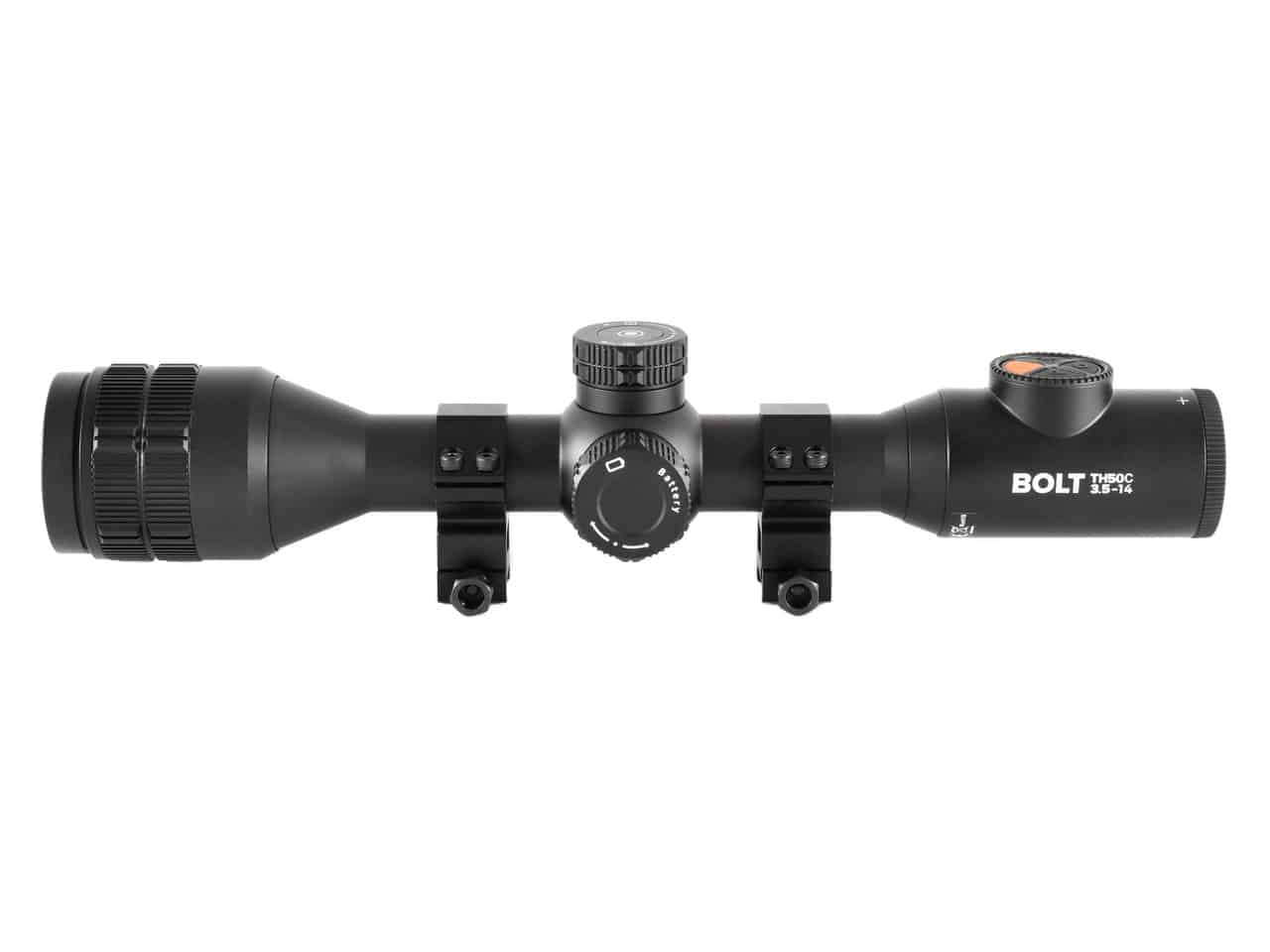

InfiRay Outdoor BOLT TH50C V2 Thermal Riflescope

(3.5-14x magnification and 2,400 yards of detection!)

5-Year Full Manufacturers Warranty!

The InfiRay Outdoor BOLT TH50C V2 expands on the success of the TH50C with the addition of improved audio recording and an optional Bluetooth laser rangefinder module. InfiRay’s industry-leading 12 μm 640×512 Micro II sensor, 1.03-inch large-format 2560×2560 resolution display, and Shutterless Calibration feature are now more powerful than ever, while still maintaining the proven combination of a manual focus lens, dual battery design, and tactile control turret. The BOLT TH50C V2’s traditional look and flexibility of a 30 mm ring mounting interface also guarantee the perfect fit on your favorite hunting rifle.


The BOLT TH50C V2 features a one-of-a-kind circular 2560×2560 AMOLED display for a more traditional rifle scope look and feel. Inside of a TH50-C V2, the image from an InfiRay 50Hz 12-micron Micro II core is displayed on a crystal clear 2560×2560 ULTRA HD 1.03in display. These components and InfiRay’s proprietary MATRIX III algorithm create an image technically and visually superior to optics with similar specifications. Dual internal 18650 batteries and an optional auxiliary battery provide 10+ hours of run time. The TH50-C V2 also comes standard with 16 GB of internal memory for hours of video capture.BOLT TH50C V2 Display View

The BOLT-C Series was designed from the ground up for optimal use on bolt action rifles and other platforms that demand flexible mounting options with increased eye relief. The traditional style of a BOLT housing allows for mounting with standard 30mm rings like a typical day scope.


The BOLT features InfiRay Outdoor’s innovative new way to control a thermal optic. Unlike other thermal optics with a turret-style controller on one side, the BOLT has a large and easy-to-find metal turret controller on top. This makes operation easier in the dark and completely ambidextrous. The turret controller also has positive and tactile clicks when twisting, and a positive click when pressing in, unlike any other thermal scope on the market. Both the aesthetics and the function of the BOLT demonstrate InfiRay Outdoor’s mission to combine the traditional style and feel of a day optic and the advanced technology of thermal imaging.


The TH50C V2 features the industry-leading InfiRay 12-micron Micro II core with proprietary MATRIX III image processing, but that is just where the high performance begins. Along with the best sensor and software the TH50C V2 uses a set of optics specifically designed for a 12-micron sensor and a large-format 2560×2560 AMOLED HD display. Dual internal batteries power the BOLT for an incredible 10+ hours, and if you need more runtime the BOLT has an additional battery well for an off-the-shelf 18500 or 18650 battery. The BOLT also supports charging the internal batteries through a USB-C connector while in operation so you are never stuck with a dead battery.


The BOLT-C  V2 comes with 32 GB of memory for storing 20,000 images or 24 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via the app. The WiFi mode also allows for up to 4 connections to the BOLT-C simultaneously allowing multiple viewers to see the BOLT-C’s thermal image in real time. Audio can also be recorded in the app via your smartphone microphone while connected to the app.

InfiRay Outdoor BOLT TH50C V2 Features:

  • High Resolution 640X512 Sensor
  • Rugged Aircraft Aluminum Housing
  • Internal Recording
  • Wifi connectivity with InfiRay Outdoor App
  • 8 Hour internal battery (18500 Battery adds 2+ Hours)
  • Full Circular Display
  • Tactile Turret Adjustment
  • 30mm Mounting versatility
  • Bluetooth LRF Optional

InfiRay Outdoor BOLT TH50C V2 Performance:

  • Onboard Recording: Video with audio and Image
  • Warranty: 5 Years
  • Rangefinder: Stadiametric
  • Picture-in-Picture: Yes
  • Reticle: 7 (2 Dynamic, 5 Static)


  • Objective Focal Length: 50mm f/1.1
  • Detection Range: 2400 Yards
  • Display Type: AMOLED
  • Eye Relief: 50mm
  • Digital Magnification: 4X
  • Diopter Range: -5 – +5
  • Display Resolution: 2560×2560
  • Optical Magnification: 3.5X
  • Vertical Angular Field of View: 7°
  • Horizontal Angular Field of View: 8.8°

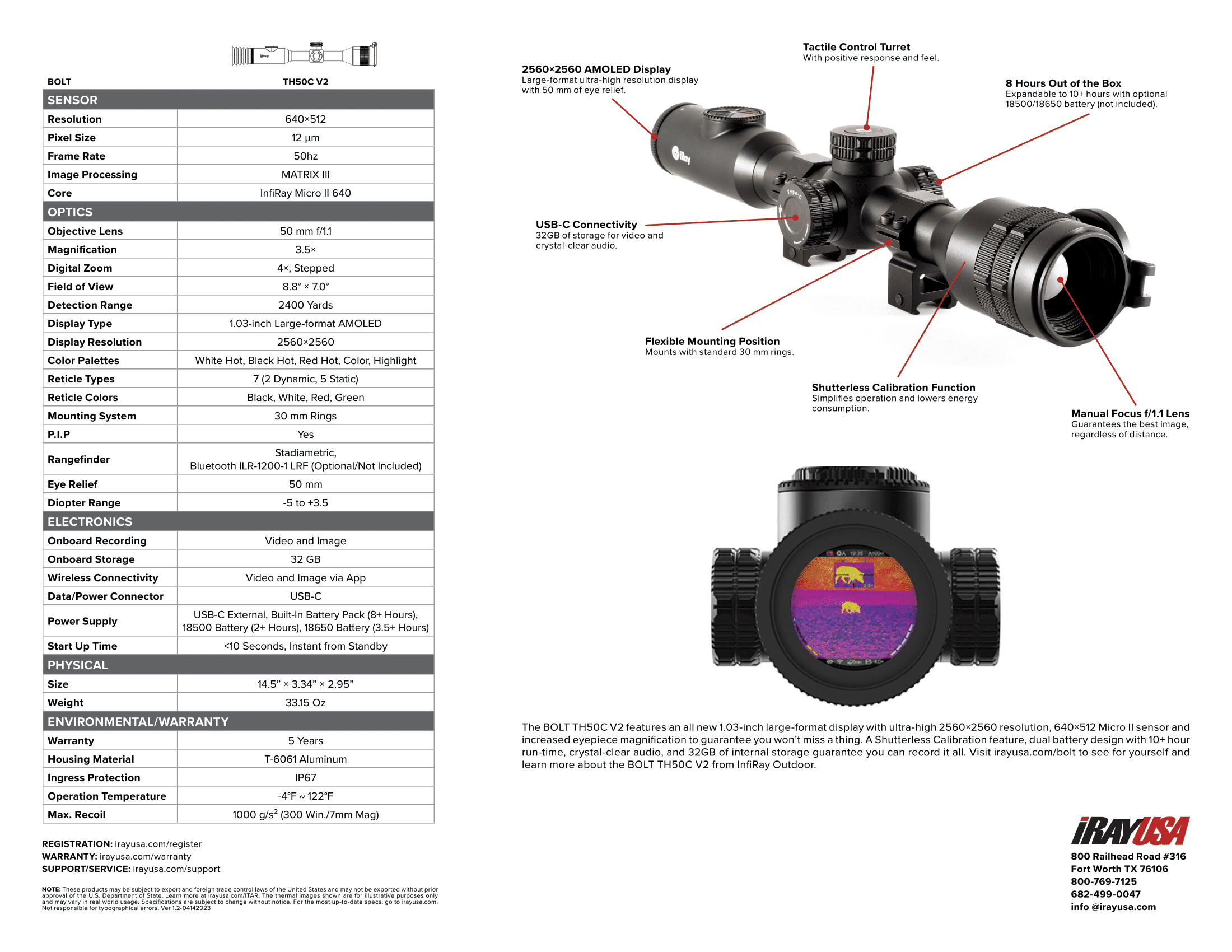

InfiRay Outdoor BOLT TH50C V2 Sensor Specifications:

  • Sensor Resolution: 640×512
  • Sensor Type: InfiRay MICRO II
  • Sensor Pixel Size: 12μm
  • Thermal Sensitivity: <25mk
  • Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
  • Spectral Response: 8-12 Microns
  • Sensor Frame Rate: 50hz
  • Device Technology: Thermal Imaging


  • Mounting Interface: 30MM Rings (included)
  • Housing Material: T-6061 Aluminum
  • Weight: 33.15 Oz

Environmental Specifications:

  • Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
  • Ingress Protection: IP67
iRayUSA 5-Year Warranty with a 5-day Repair Guarantee
“This product is backed by iRayUSA’s industry-leading 5-Year iRayUSA warranty with a 5-day repair guarantee. During the published 5-year warranty period, iRayUSA will repair or replace, at its discretion, any optic that becomes defective from normal use. If they cannot repair an optic in less than one week, they will offer a replacement in like or better condition.”

Additional information

Weight 7 lbs
Dimensions 18 × 14 × 5 in

1 review for InfiRay Outdoor BOLT TH50C V2 Thermal Riflescope (Free LRF, Batteries and Charger included!)

  1. Justin Freels (verified owner)

    I’ve only used it a little bit so far but the image quality is amazing and is really easy to use once you run through all the functions! I can’t wait to take it out to some prime hunting spots!
