Pulsar Thermion Duo DXP55 Thermal/Day Riflescope (NEW with Free additional APS 3 Battery Pack!)


Pre-Order yours now with $50 down! “Remaining balance of $5,949.97 will be due at time of shipment.”
(Free additional Pulsar APS 3 Battery Pack included with your purchase!)


SKU: PL76572 Categories: , Tag:

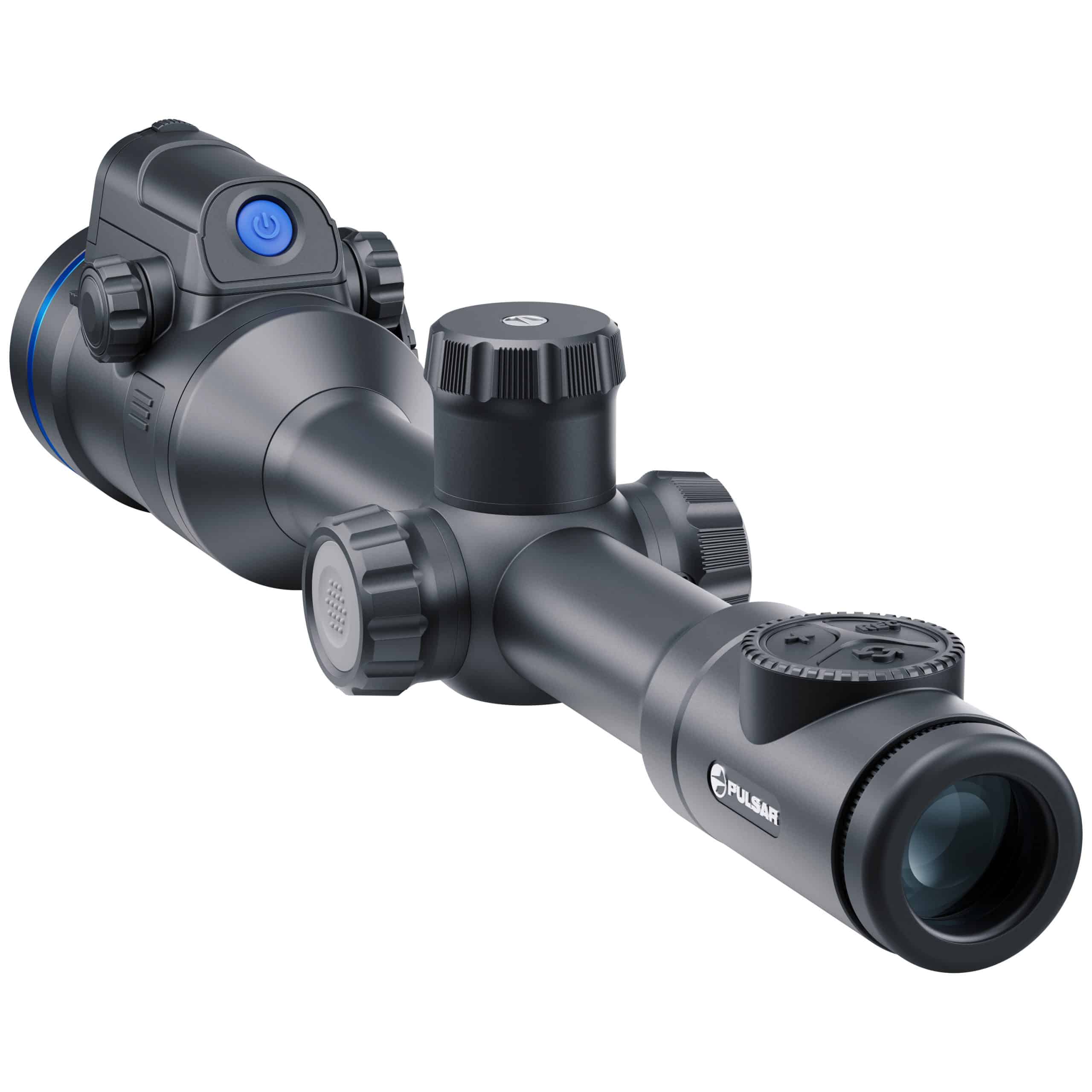

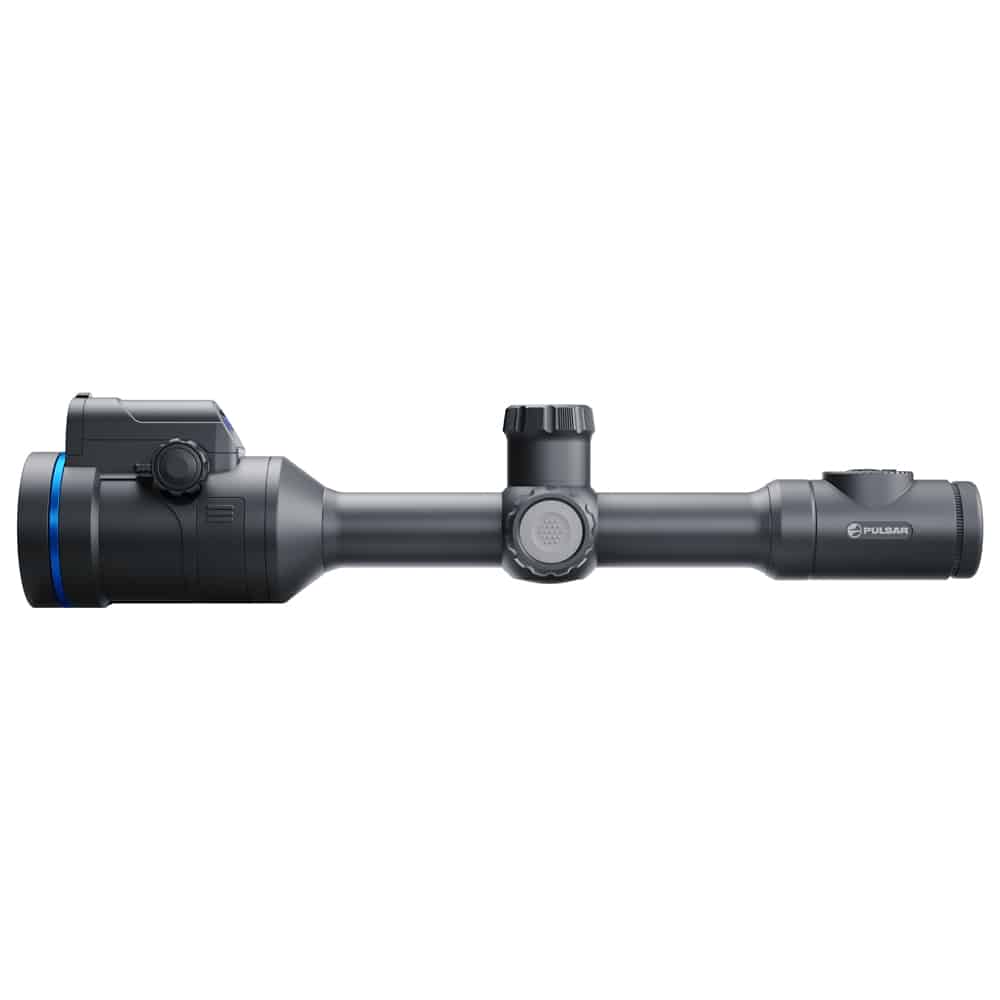

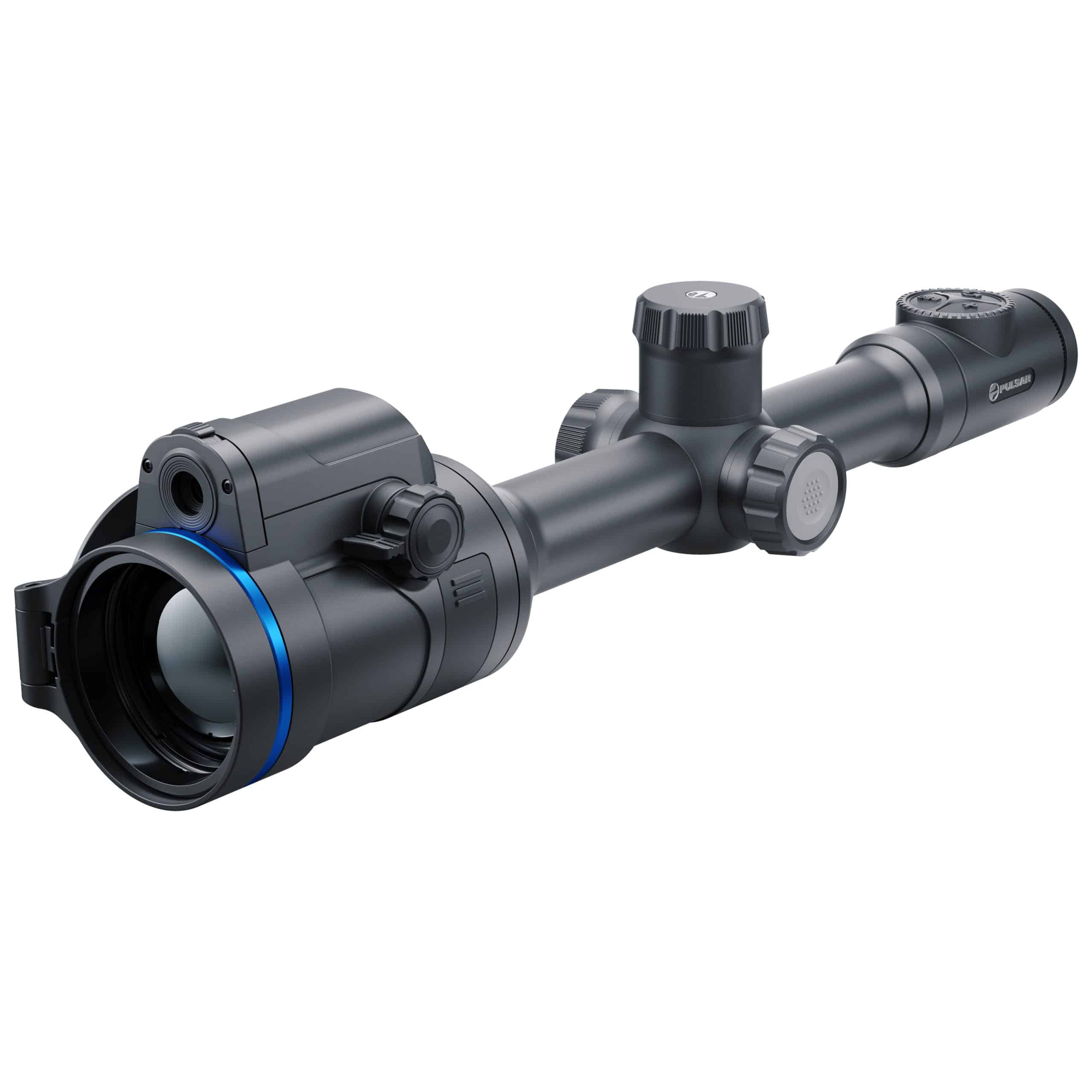

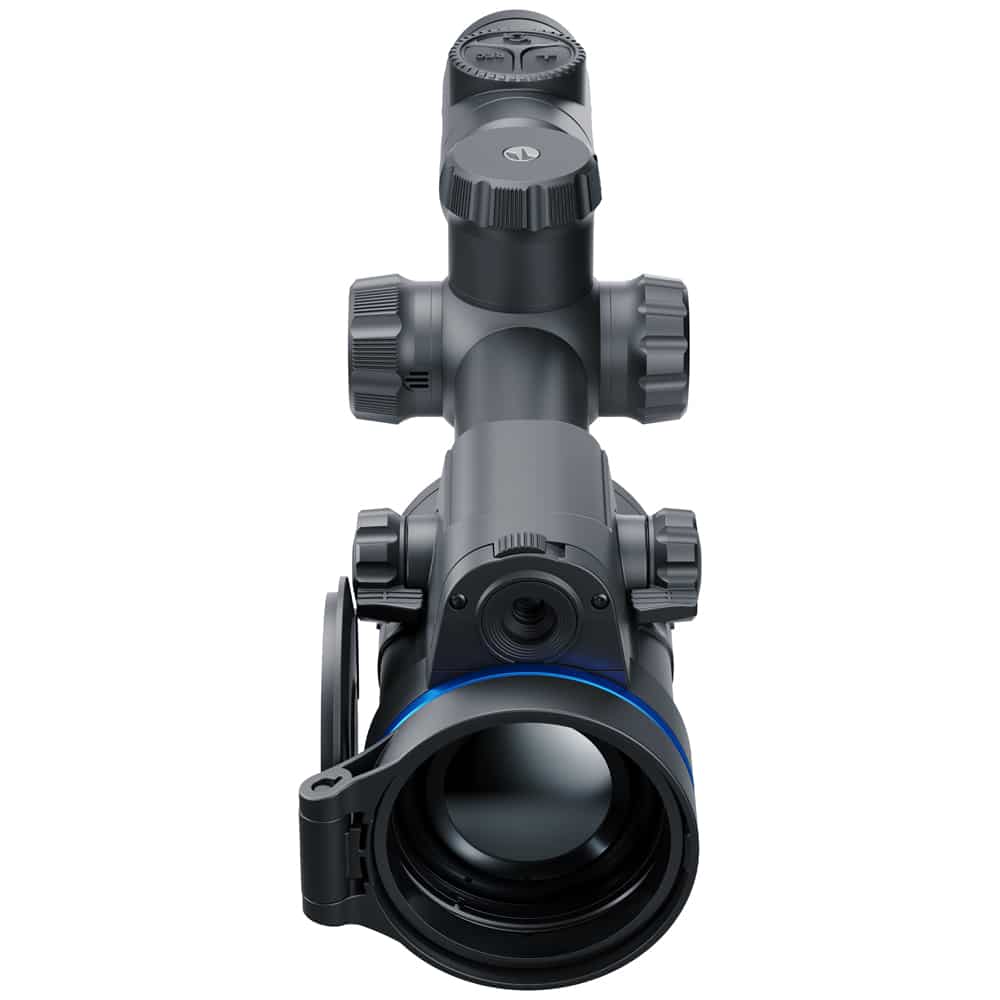

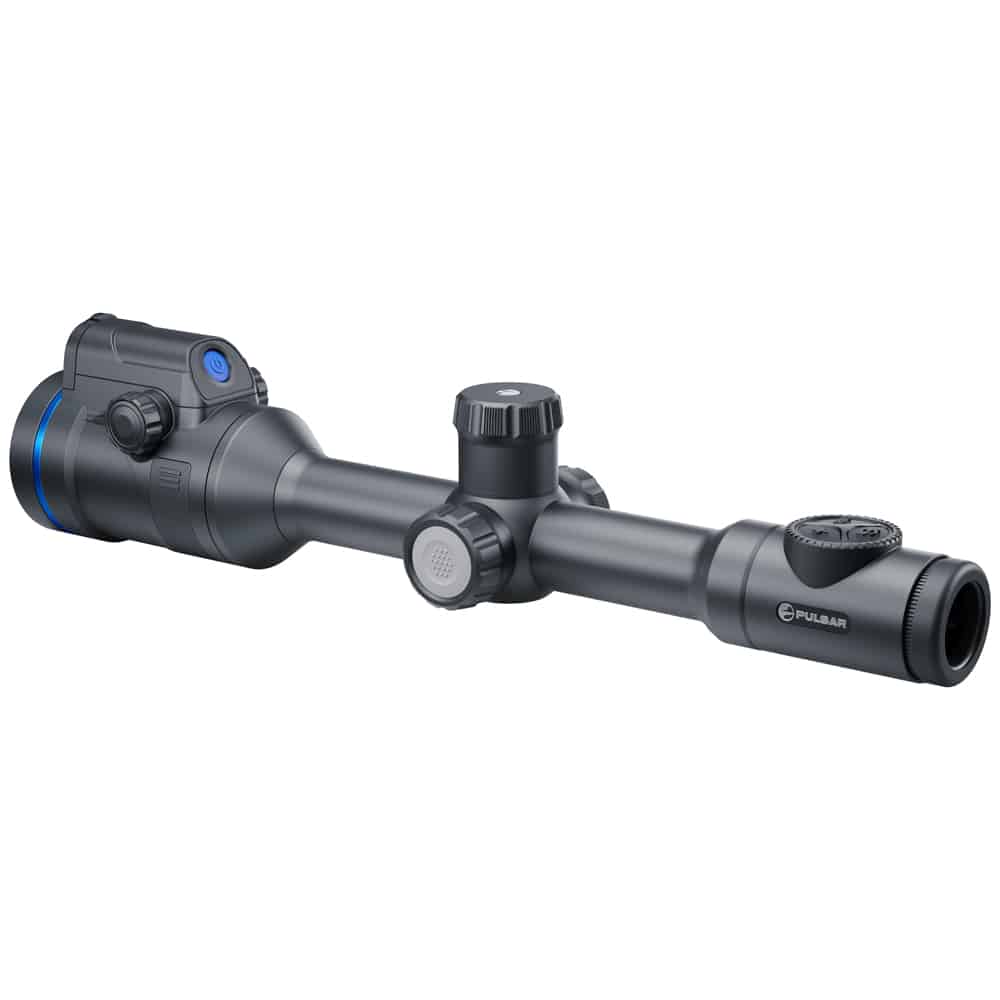

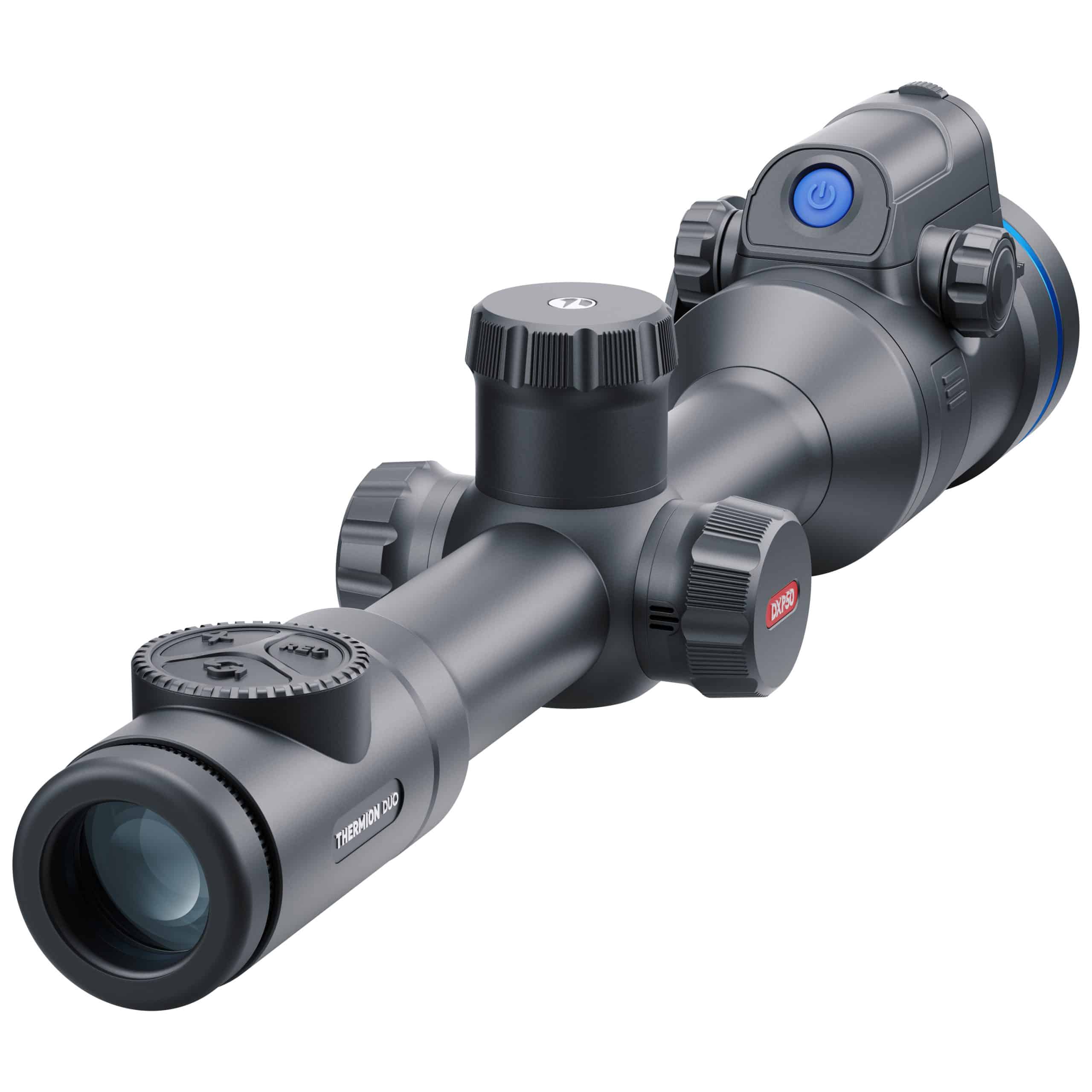

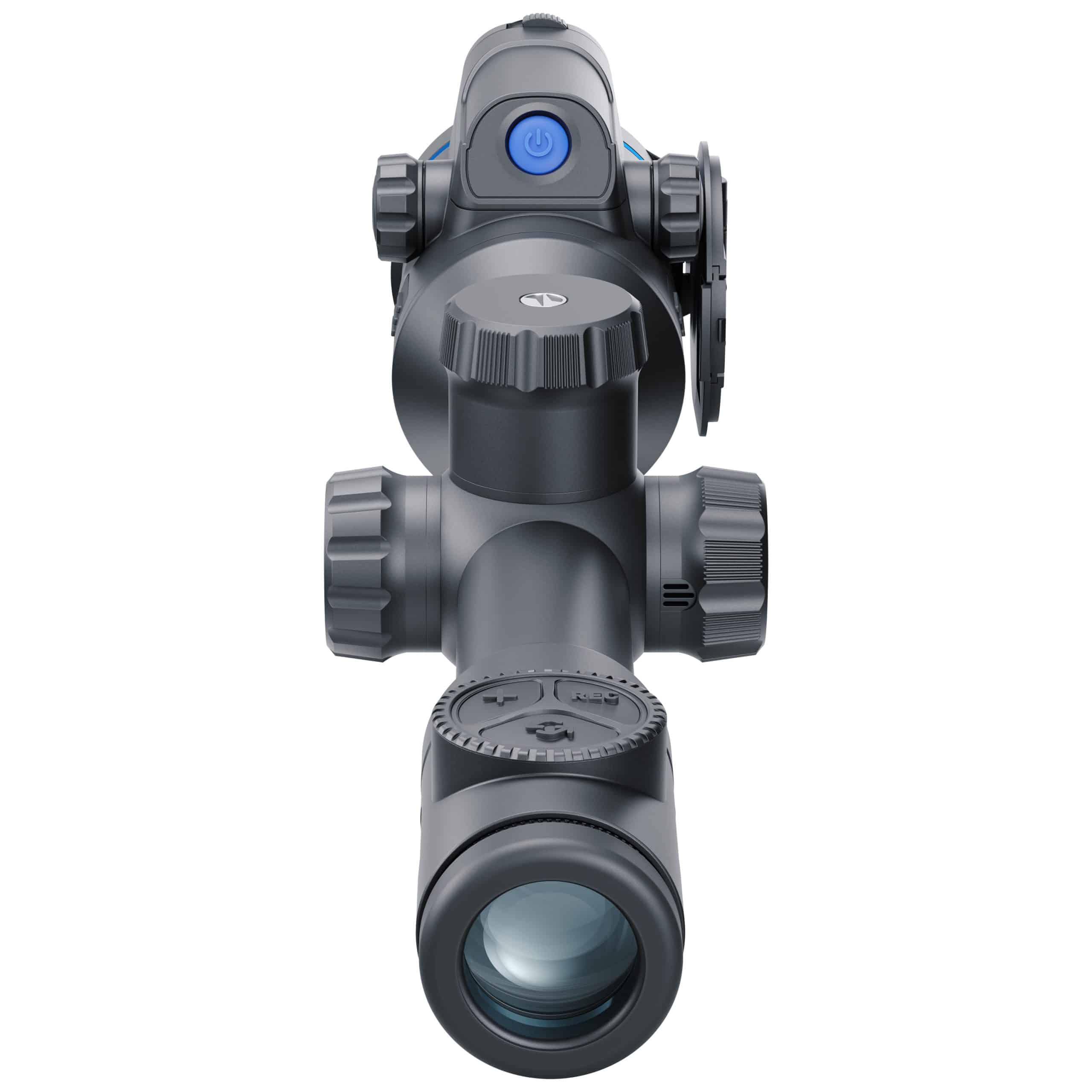

Thermion Duo DXP55 Thermal/Day Riflescope

(Thermal 2-16x magnification – Digital 4-32x and 2,000 yards of detection!)

Michigan residents please call and we will pay your sales tax! (No tax charged for other states if placing order on website.) (855) 766-4364

Pulsar is once again at the forefront of innovation with the Thermion Duo DXP55. The world’s first multispectral hunting riflescope, the Thermion Duo combines the high-tech thermal imaging Pulsar is known for with the clarity and vividness of a full-color daytime optic.

Designed primarily for hunting, the Thermion Duo DXP55 has a detection range of 2,000 yards. This highly versatile multispectral optic can defeat animal camouflage and fog on thermal mode and judge a prey’s trophy qualities in daylight with its full color mode. With its picture-in-picture feature, a hunter can simultaneously find an animal through dense fog or foliage with its 640×480 high-sensitivity thermal sensor while observing the area around it in full color 4k HD.

The Thermion Duo DXP55 boasts the wide range of practical features Pulsar products are known for, including one-shot freeze zeroing, 1024×768 photo and video recording with audio, Wi-Fi integration with the Stream Vision 2 app, and advanced image processing.

With six hours of battery life and compatibility with USB C chargers, the Thermion Duo DXP55 is both powerful and long-lasting. The Duo has a solid aluminum alloy construction, which is both shockproof and waterproof, with an IPX7 rating, capable of withstanding the most rigorous wilderness conditions. With its range of features and capabilities, the Thermion Duo DXP55 represents the future of hunting and digital optics.

Thermion Duo DXP55 Specifications:

Model DXP55
SKU 76572
Type uncooled
Resolution, pixels 640×480
Pixel Pitch, µm 17
NETD, mK < 25
Frame refresh rate, Hz 50
Digital Sensor
Resolution, pixels 3840×2160
Optical Specifications
Lens, mm:

– Thermal imaging channel

– Digital channel


F50 F/1.0


Magnification, x Thermal 2-16x ~ Digital 4-32x
Eye relief, mm/inch 50/1.96
Field of view (H), °/m@100 12.4×9.3 / 21.8×16.4 (thermal channel on minimal magnification) | 6.1×4.6 / 10.6×8 (digital channel on minimal magnification)
Diopter adjustment, D -3/+5
Detection distance (Thermal imaging channel, object of “deer” type), m/y 1800/1968.5
Aiming Reticle
Click value (H/V), mm@100 m /

Click range, mm@100 m (H/V)

21.25 / 21.25 (thermal channel)
10.33 / 10.33 (digital channel)
4250 / 4250 (thermal channel)
2066 / 2066 (digital channel)
Number of preloaded reticles 10
Resolution, pixels 1024х768
Operating Features
Diameter of the riflescope body to assemble the mounting rings, mm 30
Power Supply, V 3–4.2
Battery type / Capacity / Rated Output Voltage Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable)


Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)*


Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in)

External Power Supply 5 V, 9 V (USB Type-C Power Delivery)
Battery Packs (built-in APS5 and removable APS2) operating time at temp. = 22 °C, hrs* 6
Max. recoil power on rifled weapon, Joules 6000
Max. recoil power on smoothbore weapon, caliber 12
Degree of protection IP code (IEC60529) IPX7
Operating temperature, °С / °F -25 – +50 / -13 – +122
Dimensions with an eyecup, mm/inch 420x78x83.5 / 16.54×3.07×3.29
Weight (with APS2 battery), kg/oz 0.96 / 33.86
Video Recorder
Photo / video resolution, pixels 1024×768
Video / photo format .mp4 / .jpg
Built-in memory eMMC 16 GB
Wi-Fi Channel***
Frequency 2.4/5 GHz
Standard IEEE 802.11 b/g/n/ac


Additional information

Weight 7 lbs
Dimensions 18 × 14 × 5 in
