Sightmark Wraith 4K Mini 2-16×32 Digital Riflescope (Free NS10,000 Battery Pack!)

(2 customer reviews)

Original price was: $959.99.Current price is: $799.97.

Description

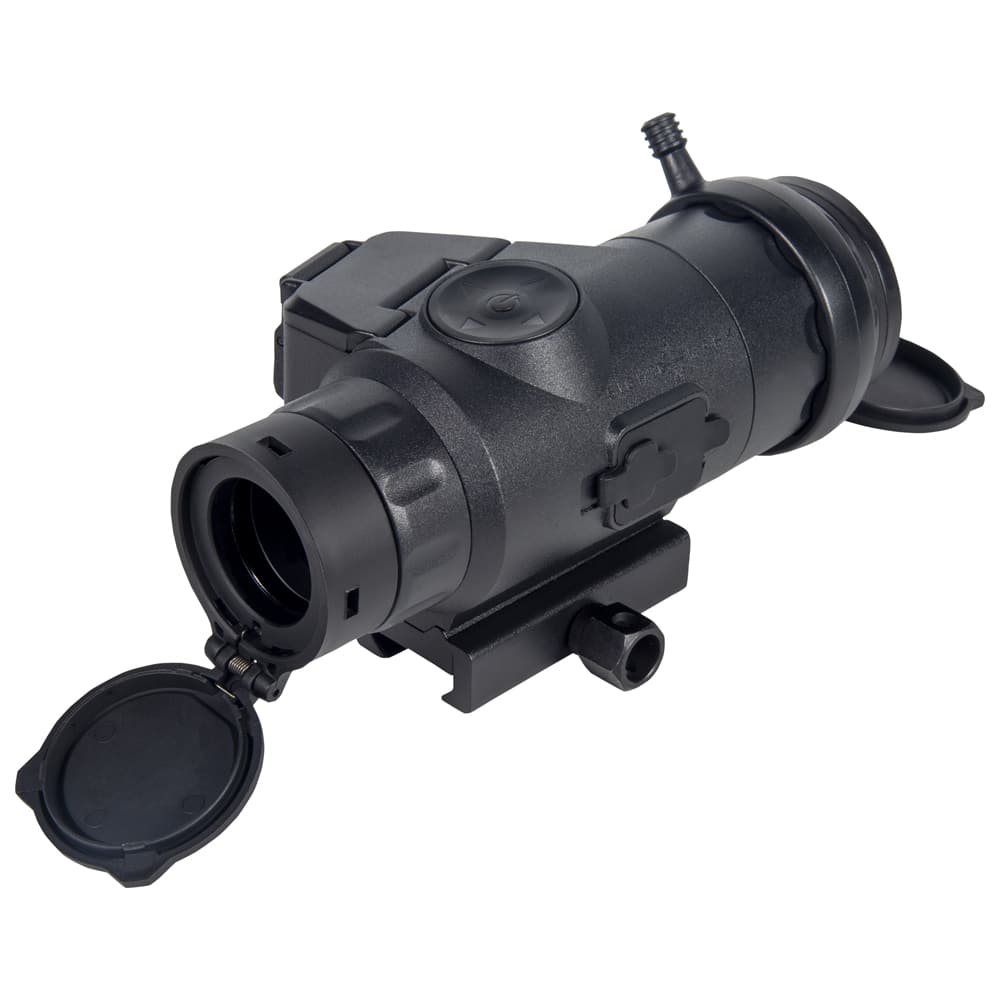

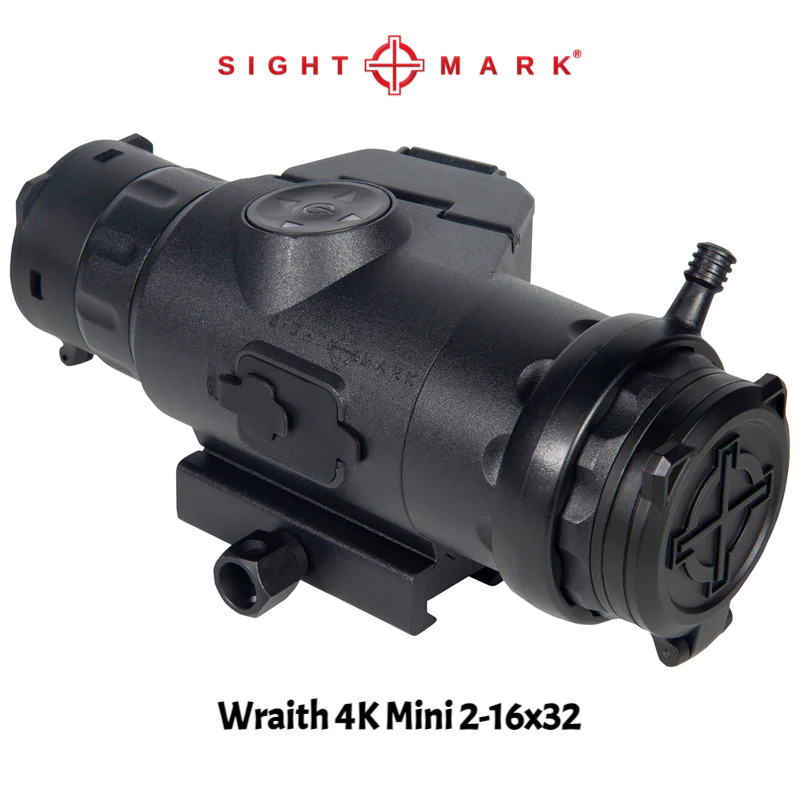

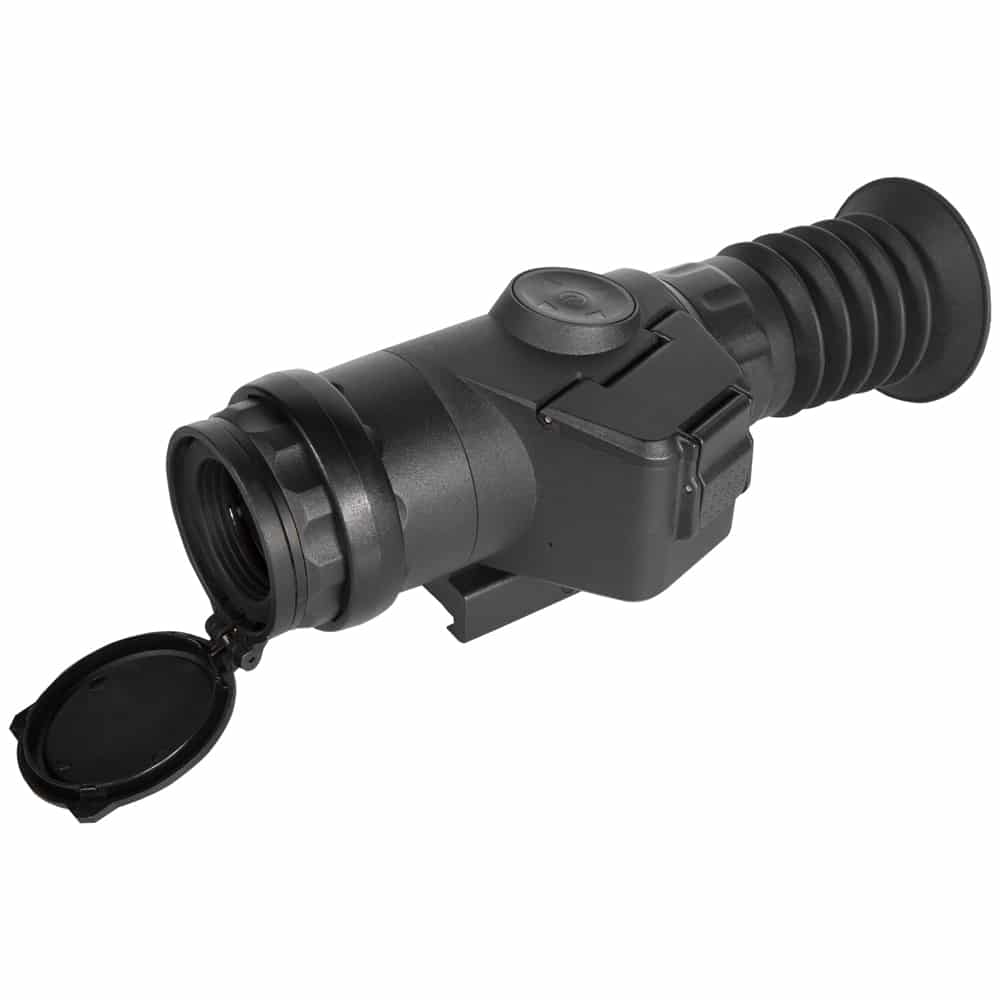

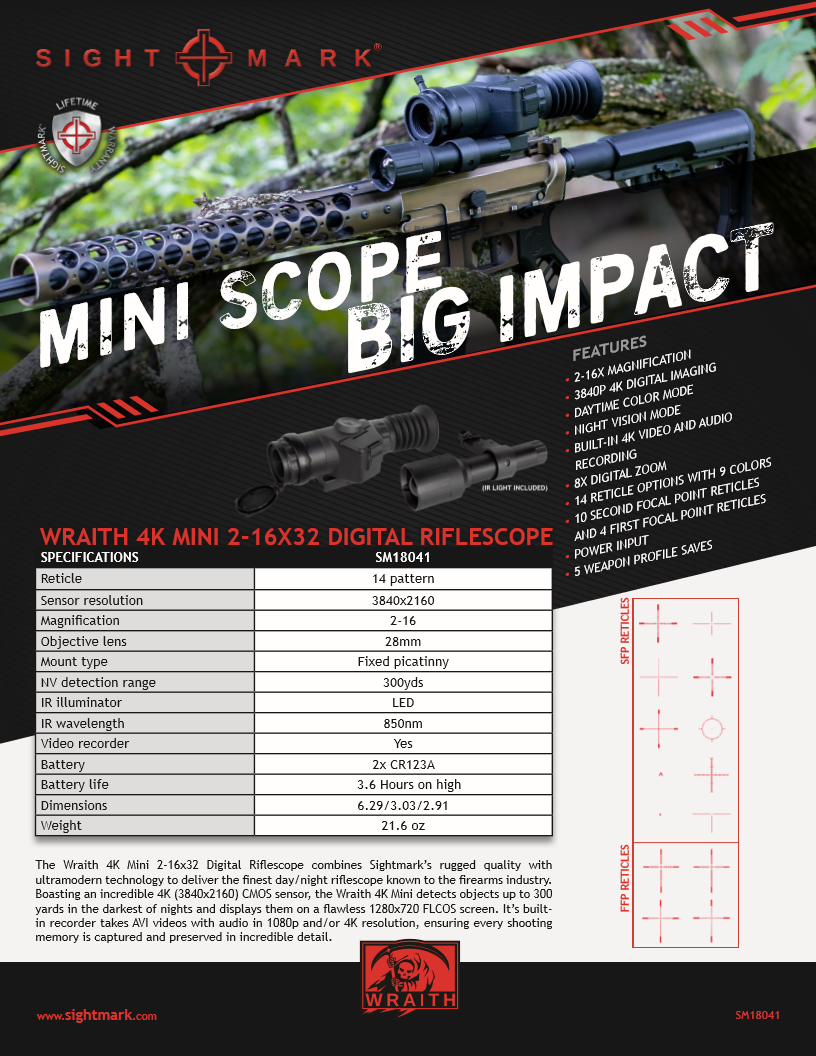

Sightmark Wraith 4K Mini 2-16×32 Digital Riflescope

FREE NightSnipe NS10,000 10-Hour Rechargeable Battery Pack Kit!

The Wraith 4K Mini 2-16×32 Digital Riflescope combines Sightmark’s rugged quality with the most advanced digital optic technology available to deliver the finest day/night riflescope known to the firearms industry. Boasting an incredible 4K (3840×2160) CMOS sensor, the Mini detects objects up to 300 yards away in the darkest of nights and displays them on a flawless 1280×720 FLCOS screen.

Although it’s extremely light and compact, the Mini features big-time capabilities. The Wraith Mini’s built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full-color HD imaging during the daytime and two digital night vision color palettes (green or black & white), 850nm IR illuminator and first-focal-plane reticle options, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.

Supremely durable, the Wraith 4K Mini is a solid aluminum scope that operates in temperatures ranging from 32F to 140F (0 to 60C), shockproof for drops up to 3 ft., IPX6 water resistant and capable of handling recoil up to .308 Winchester.

[yotuwp type=”videos” id=”seNZyoRqn2o” ]

Wraith 4K Mini Features:

  • 4K Digital Imaging
  • 2-16x magnification, 8x digital zoom
  • 300-yard night detection range

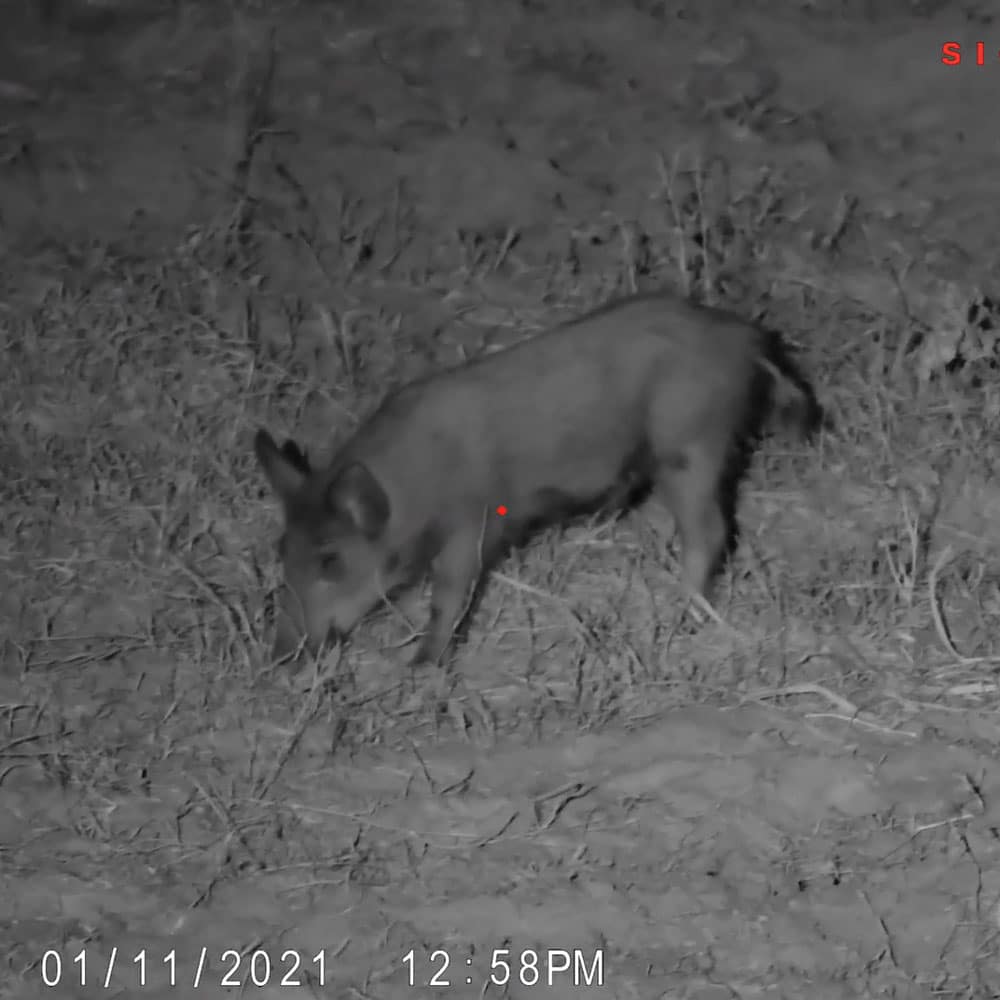

  • Night vision mode

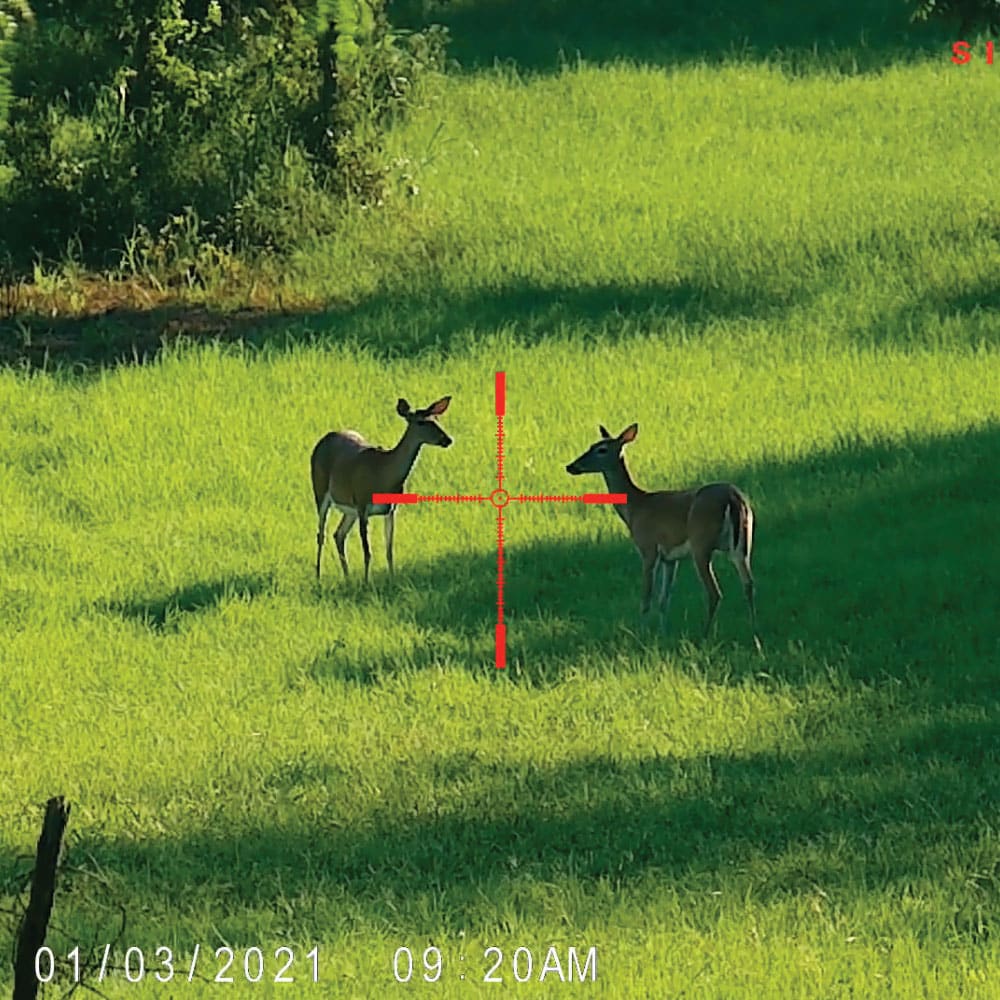

  • Daytime color mode
  • Built-in 4K video recording with audio capabilities
  • 14 reticle options with 9 colors

Wraith 4K Mini Specifications:

Electronic components
Type of sensor CMOS sensor
Sensor resolution, pixels 4K (3840×2160)
Display type FLCOS
Display Resolution, pix. 1280×720
Built-In Video Recorder Availability Yes
Maximum memory card supported, Gb 256
Format of video clip AVI
Resolution of video clip 1080/4K
Format of photo files JPEG
Resolution of photo files 4k
Memory capacity Approximately 1.75 hours video with 64gb SD card  on 4k@30  quality level.
Optical characteristics
Lens diameter, mm 32
Magnification:
Mini 4K 2-16×32 (SM18041) 2-16x
Mini 4K 4-32×32 (SM18042) 4-32x
Field of View, Ft @ 100 Yds:
Mini 4K 2-16×32 (SM18041) 40
Mini 4K 4-32×32 (SM18042) 21
IR-illuminator
Emitter LED
IR Wavelength, nm 850nm
Equivalent IR Power, mW ~1060 on high, ~540 on medium, ~400 on low
Battery Life 2 hours on high
Battery type 2x CR123A
Range of Detection
Night Vision detection range, yd/m 300/274
Power Supply
Power Supply, v 6
Battery type 2x CR123A
Battery life 3.6Hrs Video Mode/ 4.4Hrs Preview Mode
External Power Supply 5V via USB-C
Reticle
Windage & Elevation click value 1 pixel/ ~X0.4MOA
Adjustment range, elevation ~ 150 MOA
Adjustment range, windage ~ 350 MOA
Number of reticle options 10 SFP 4FFP
Colors Black, white, red, blue, green, cyan, orange, yellow, magenta
Physical & operational characteristics
Body Material Aluminum
Accessory rail mount Picatinny
Operating Temp,°F / C° 32 to 140 / 0 to 60
Waterproof rating IPX6 – water resistant
Nitrogen Purged, yes/no no
Shockproof, yes/no yes, 3ft
Maximum recoil, caliber .308
Tube diameter n/a
Length, in/mm 6.299/160
Width, in/mm 3.031/77
Height, in/mm 2.913/74
Weight (with batteries), oz 21.6 oz

Battery Used:

  • Type: 2x CR123A
  • Quantity: 1

Included Accessories:

  • 850nm IR Illuminator

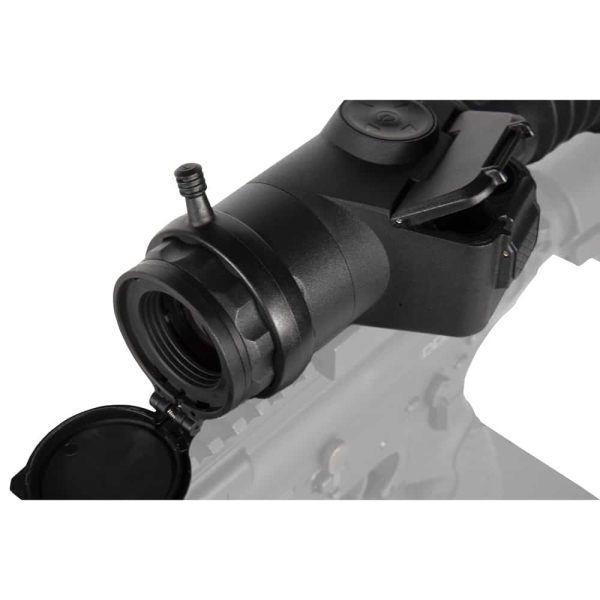

  • Flip-up lens cover
  • Focus throw lever

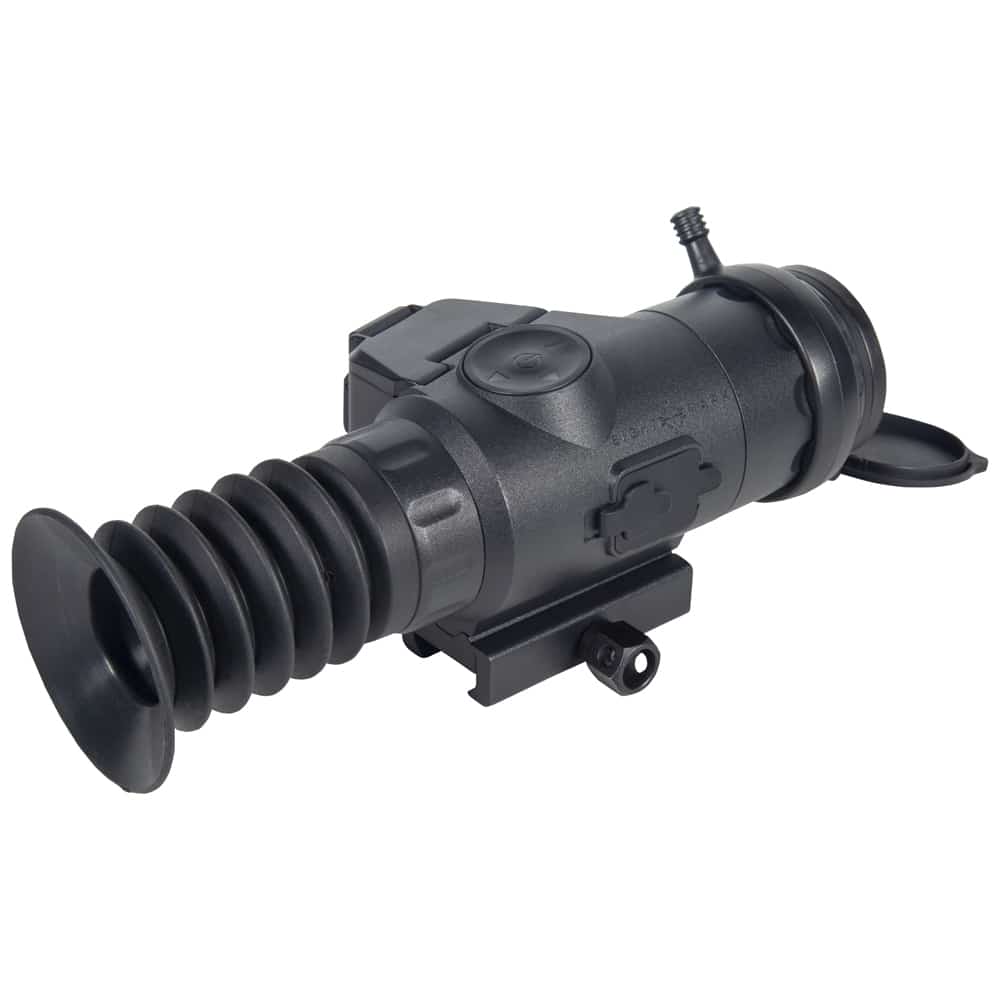

  • Eye cup
  • Fixed picatinny mount
  • User manual

Wraith 4K Mini Models:

  • SM18041
    • Magnification: 2-16×32
    • Field of View, Ft @ 100 Yds: 40
  • SM18042
    • Magnification: 4-32×32
    • Field of View, Ft @ 100 Yds: 21

Product Downloads:

Additional information

Weight 6 lbs
Dimensions 18 × 14 × 5 in
NS10,000 Battery Mount

Pouch, Picatinny Rail

2 reviews for Sightmark Wraith 4K Mini 2-16×32 Digital Riflescope (Free NS10,000 Battery Pack!)

  1. johnpa420 (verified owner)

    Ok so to start super fast shipping. Excellent responsive customer service.
    Now on to the scope. Seems solid and well made. Picture in daytime view is awesome. Perfect for that not quite dark yet shot. Easy to use as far as functions. Not complicated at all. The night vision is excellent. I think the I.R could be brighter but is very sufficient for short to med ranges. The only thing I would consider a problem would be battery life in cold weather. However Predator Hunter Outdoors solved this with the rechargeable battery pack. Great move on the company’s part. Very satisfied with my purchase.

  2. thomas.d.houser (verified owner)

    My quick first impressions of the Wraith 4K Mini. Form factor is nice and unit is solidly built with no obvious shortcomings in quality. Day/Night picture is very clear and crisp. Love the Reticle selections. Where it falls a little short in my opinion are 3 things that I hope will be addressed in future upgrades. First, the rubber eye cup is horrible and in my opinion completely unusable. It sags off the eyepiece and restricts the view of the screen. It’s like trying to watch a big screen TV through a flimsy rubber straw.. it just doesn’t work. That issue leads into the next which is without the eye cup attachment, you have to mount the unit much closer to your preferred eye relief. That can be a CHALLENGE! Most scope rails do not extend far enough back to place the the unit close enough to your eye. So, you either have to use a rail extender in reverse or in my case, 3D print a completely unique mount. This is a common problem with this style unit, the Pard units suffer the same issue. Lastly, while the picture is very nice it seems a bit over saturated with color in the Day mode. There are no color correction adjustments that appear in the on-screen menu. Now there “Might” be a correction that I’m not aware of with some of the other settings but other than a “Quick Start” manual you get no instructions on any features of this unit. Online manual was not available, the SM-Wraith link was dead and led no where. In Summary, the positives far outweigh the negatives and for the cost it’s a keeper!
