Description

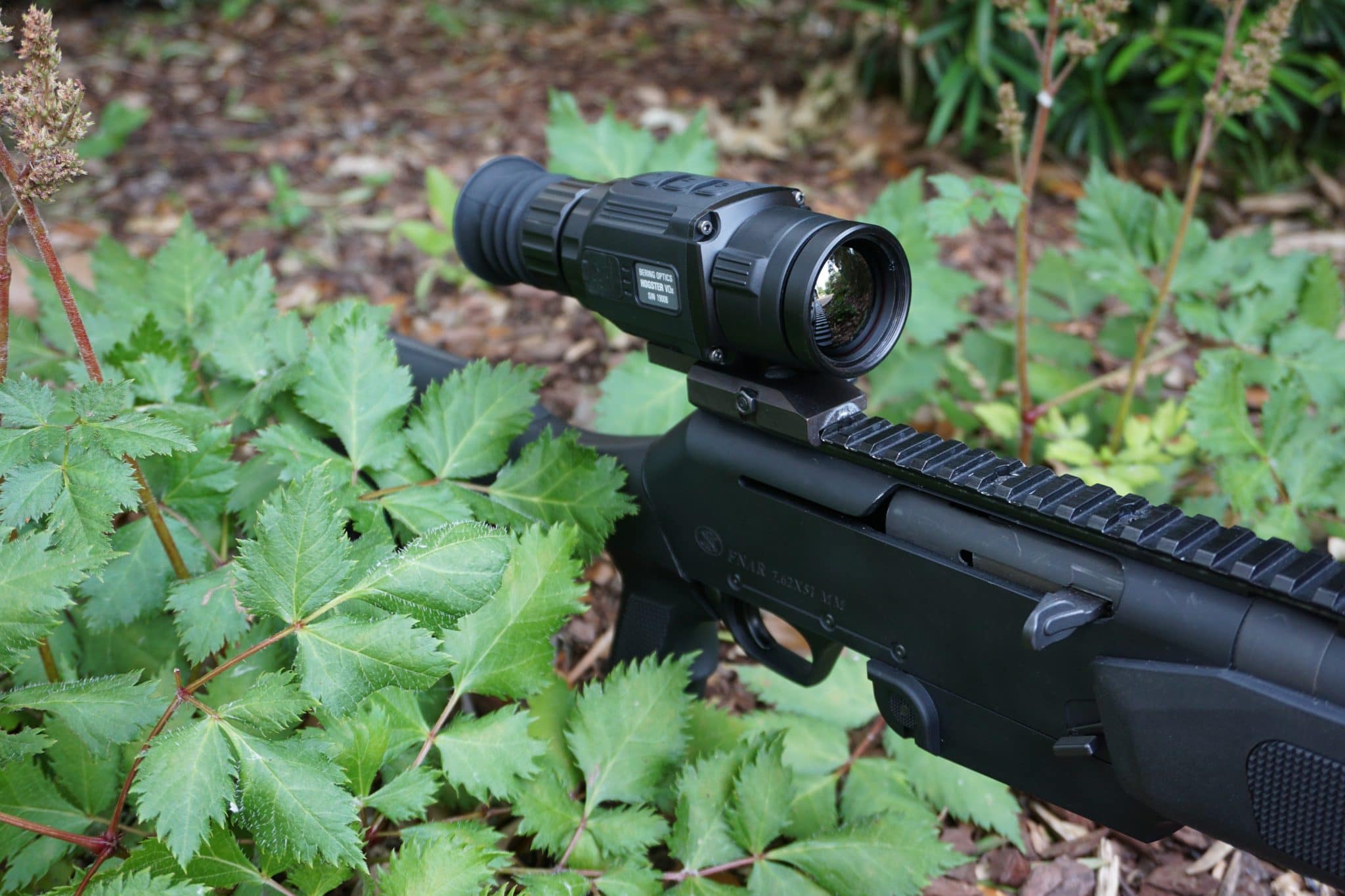

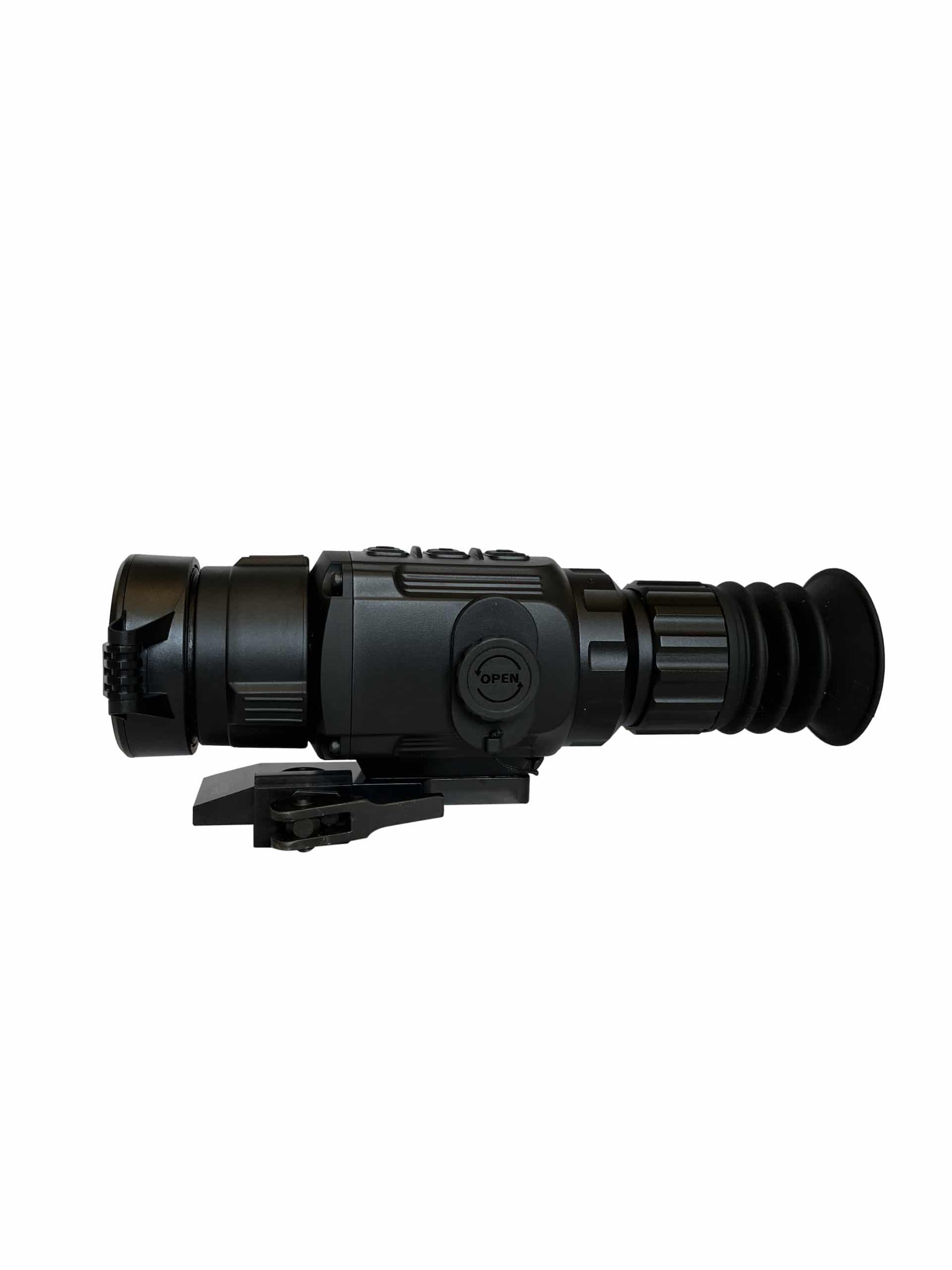

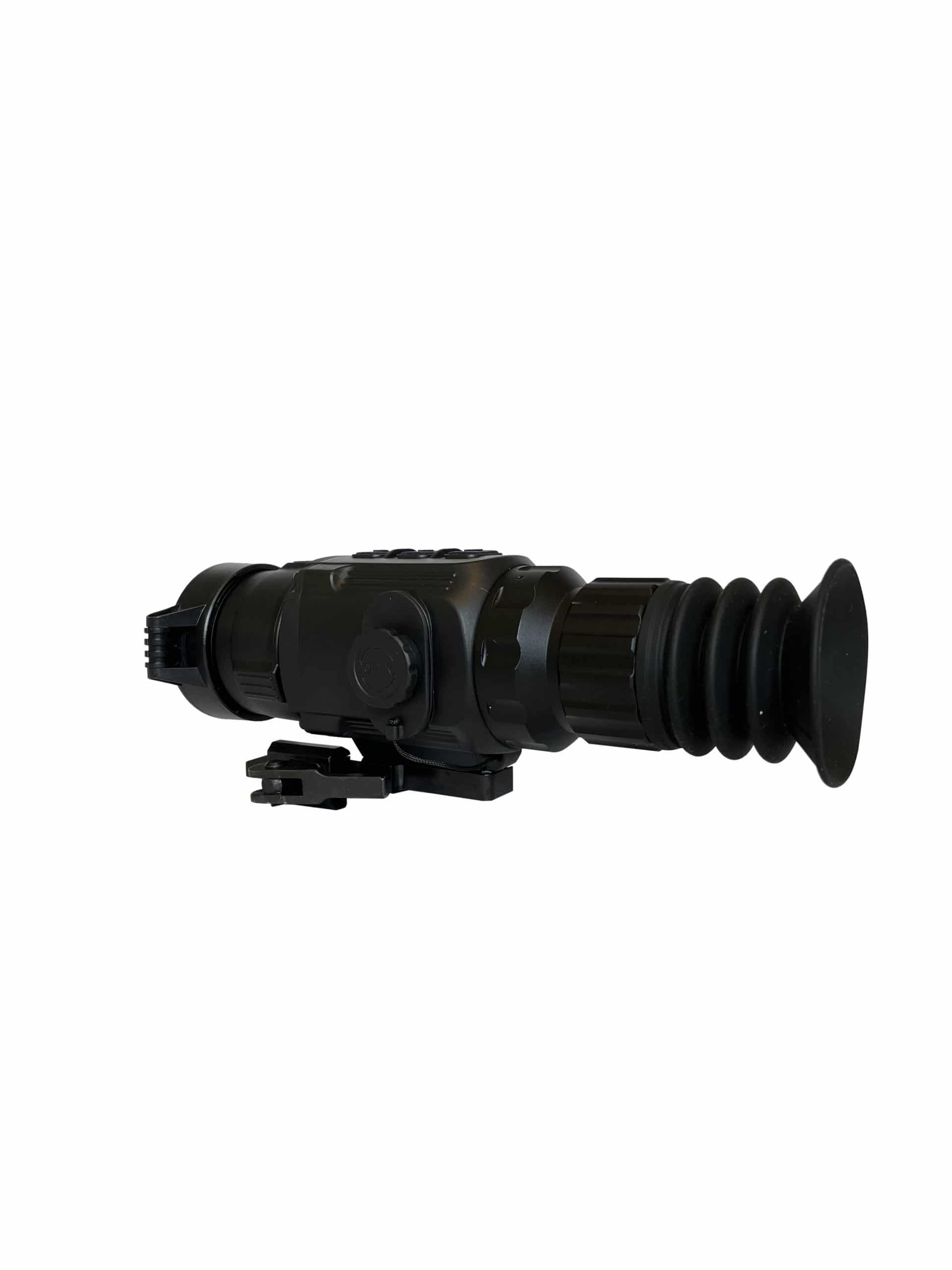

Bering Optics SUPER YOTER R 25mm Thermal Weapon Sight
(1.5-6x magnification and 1,000 yards of detection!)
Free NightSnipe NS10,000 Rechargeable Battery Battery Pack Kit (10-Hour Run Time) Picatinny Rail Mount Or Velcro Pouch.
Michigan residents please call and we will pay your sales tax! (No tax charged for other states if placing order on website) (855) 766-4364
The Bering Optics SUPER YOTER R™ Thermal Weapon Sight features the advanced 12μm Vanadium Oxide (VOx) 640×480 core resolution with 50Hz refresh rate that makes the scope ideal for predator control at medium- and long-range distances. This Thermal Scope has 3 modifications with native magnification of 3.0x (BE46050L), 2.0x (BE46035/BE46035L) and 1.5x (BE46025/BE46025L) with digital zoom of 2X, 4X. The wide range of controls and capabilities allow the user to adapt the scope to various conditions and personal preferences. There are 8 reticle patterns including 3 BDC reticles, along with four color options for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the options.
A unique adjustable Stradiametric Rangefinder can be set to the height of the animals, thus increasing the overall usefulness of this feature. Other useful features of the SUPER YOTER R™ is a wide selection of the image adjustment options as well as the image background adjustment and calibration.
The SUPER YOTER R™ is nitrogen-purged, is water-, dust- and shock-proof and shock-rated for .338 Win Mag., 30-06 Spring Mag. The SUPER YOTER R™ is action ready in any environment or light conditions, including conditions when the environmental obscurants such as smoke, dust, haze, are present.
SUPER YOTER R FEATURES:
- Superior for predator control at medium- and long-range distances
- Excellent performer in high humidity conditions
- Picture-in-Picture function- 2X multiplied image on a top of the display
- Automatic shatter based thermal VOx core with Auto- or Manual calibration
- Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
- 8 reticle patterns including 3 BDC reticles
- 4 color options for each reticle pattern
- Precise W/E adjustment increments is 0.54” at 1X (native magnification) and just 0.14” at 4X multiplied image for BE46050L model
- Manual control of the image sharpness and screen brightness
- Manual control of the contrast
- Manual control of the image background balance of white (Cool or Warm)
- Ability to save 4 profiles of zeroing calibration data
- Stradiametric Rangefinder function to estimate the distance to the targets of manually adjustable target’s height • A precise lens focusing mechanism
- 5V DC external power supply option via a Type-C USB port
- Blind Pixel repair tool
- Standby mode
- Digital Compass
- Inclinometer
- Battery status indicator
- Nitrogen purged
- Video out
- 32Gb internal memory
- Built-in internal recording function in .mp4 (video) and .jpeg (image) formats
- Wi-Fi capable- allows media recording to the mobile device (iOS or Android App is required)
- Quick-Detach (QD) Picatinny mount (BE46025/BE46035)
- LaRue Tactical® Quick-Detach (QD) lockable mount (BE46025L/BE46035L/BE46050L)
- 4 years warranty on parts and labor
SUPER YOTER R SPECIFICATIONS:
| Product Modification | SUPER YOTER R | |||||
| Product SKU# | BE46025 /
BE46025L |
BE46035 /
BE46035L |
BE46050L | |||
| Optical Magnification, x | 1.5x | 2.0x | 3.0x | |||
| Digital Multiplication, X | 2X, 4X | |||||
| Objective lens system | 25mmF/1.0 | 35mmF/1.0 | 50mmF/1.0 | |||
| Angular FOV at 1.0x (horizontal x vertical), degree | 18° x 13° | 11° x 8° | 8.5° x 6.4° | |||
| Eye relief, mm | 46 | |||||
| Focus range, yard | 1 to infinity | |||||
| Diopter Adjustment, D | -5: +5 | |||||
| 1.34” @1X
(1.5x magnification) |
0.96” @1X
(2.0x magnification) |
0.54” @1X
(3.0x magnification) |
||||
| Core resolution, pxl | 640×480 | |||||
| Pixel pitch, µm | 12 | |||||
| Image refresh rate, Hz | 50 | |||||
| Thermal Sensitivity (NETD), mK | ≤ 40 | |||||
| Display type and resolution, pxl | OLED 1024×768 | |||||
| Start-up time, typical, sec. | 20 | |||||
| Object type and size, approx., ft² / m² | Hog 7.5 / 0.7 | Coyote
5.5 / 0.5 |
Hog
7.5 / 0.7 |
Coyote
5.5 / 0.5 |
Hog
7.5 / 0.7 |
Coyote
5.5 / 0.5 |
| Detection, approx., yds / m | 900 /800 | 700 /630 | 1100 /1000 | 900 /800 | 1650/1500 | 1200/1100 |
| Recognition, approx., yds / m | 450 /400 | 350 /325 | 660 /600 | 550 /500 | 990 /900 | 770 /700 |
| Dimensions with QR mount, approx., in / mm | 7.5 x 2. 83 x 2. 36 /
190x72x60 |
7.8 x 2. 83 x 2. 36 /
200x72x60 |
8.46 x 3.15 x 2.36 /
215x80x60 |
|||
| Weight w/out batteries, approx., oz/g | 17.5 / 497 | 18 / 510 | 20 / 570 | |||
| Power supply | 3V CR123 (two) or 3.7V rechargeable 16650 (two) or
5V DC USB C-type |
|||||
| Estimated battery life with two Lithium 3V CR123, hour | 3.5 | |||||
| Operating temperature, typical, °F/°С | 4° to +122° / -15° to +50° | |||||
| Water intrusion | IP66 | |||||
| Humidity, % | up to 98% | |||||
KIT INCLUDES:
- SUPER YOTER R™ 640×480 Thermal Weapon Sight
- Quick-Detach (QD) mount
- Front lens protective cap
- Rubber eye guard
- 2 CR123 batteries
- Type-C USB cable
- Soft Carrying Case with a shoulder strap
- Lens Cleaning Cloth
- Instructions manual
OPTIONAL ACCESSORIES:
- Focus Ring Cattail by ZRTS (BE80980) for SUPER YOTER R™ with 35mm Lens (BE46035 / BE46035L)
- Tactical Rubber Eye Guard (BE80030)
- Extended Battery Cap (BE80008)
