Sightmark Wraith Mini 2-16×35 Thermal Riflescope (Free NS10,000 10hr Battery Pack!)


Free NS10,000 10hr Battery Pack Included!
Optional NightSnipe Sightmark Wraith Bolt Action / AR – Extension Mount!
[yotuwp type=”videos” id=”F4tftuP1BOU” ]

SKU: SM17001 Categories: ,

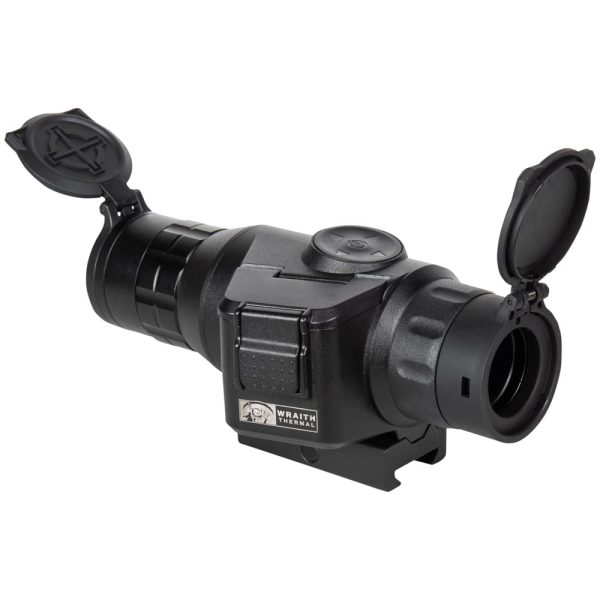

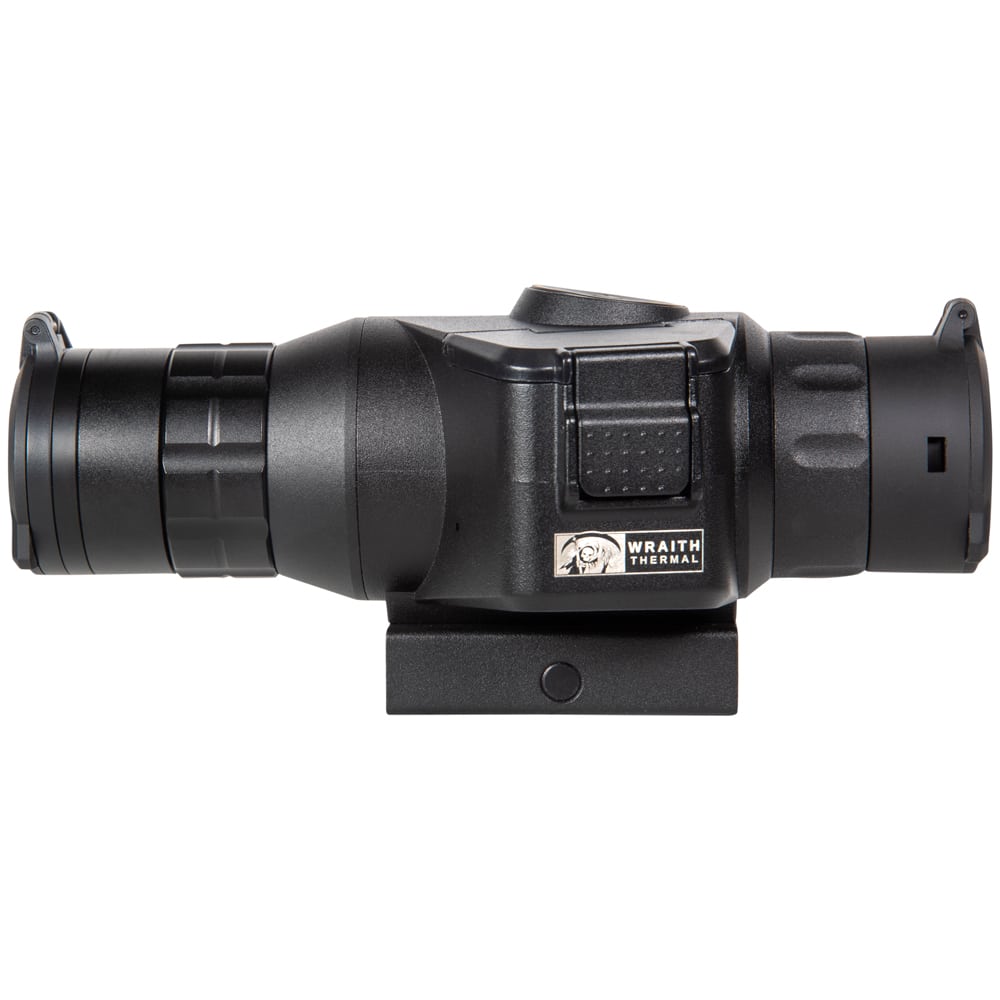

Sightmark Wraith Mini 2-16×35 Thermal Riflescope

(2-16x magnification and 1,400 yards of detection!)

Michigan residents please call and we will pay your sales tax! (No tax charged for other states if placing order on website.) (855) 766-4364

The Wraith Mini Thermal offers the same peerless quality of Sightmark’s Wraith Mini digital night vision models on a digital thermal riflescope. The new Wraith Mini Thermal comes equipped with a powerful 384×288 sensor resolution which enhances imaging algorithms to create a crisp picture, a 1024×768 OLED display, a built-in video recorder with sound to capture the best moments of a hunt and a battery life of 3.5 hours on video mode and 4.4 hours on preview mode, the Wraith Mini Thermal proves to be a durable thermal scope with enhanced imaging capabilities and a long battery life for the field. With its 1400 yard detection range, 2x optical magnification and 1-8x digital zoom, the Wraith Mini Thermal is optimized for medium range engagements.

Sightmark Wraith Mini Thermal Scope Features:


Sightmark Wraith Mini Thermal Scope
Brand Name Sightmark
Model Name Sightmark Wraith Mini 2-16×35 Thermal Riflescope
Category Name Thermal Riflescope
SKU Number SM17001
UPC Number 810119010469
Electronic components
Type of sensor Thermal sensor
Sensor resolution, pixels 384×288
Display type OLED
Display Resolution 1024×768
Built-In Video Recorder Availability Yes
Maximum memory card supported, Gb 256
Pixel Pitch (µm) 17
Spectral Range (μm) 8-14
NEDT (50 Hz, 300 K, F/1) (mK) 40
Optical characteristics
Magnification 2x optical
Aperture F1
Lens diameter, mm 35
Digital zoom 1-8x
Field of View (degrees) 13
Detection Range (yards/meters) 1400
Eye Relief, in/mm 2.4 / 60
Diopter adjustment, dptr. -3 to +3
Power Supply
Power Supply, v 6

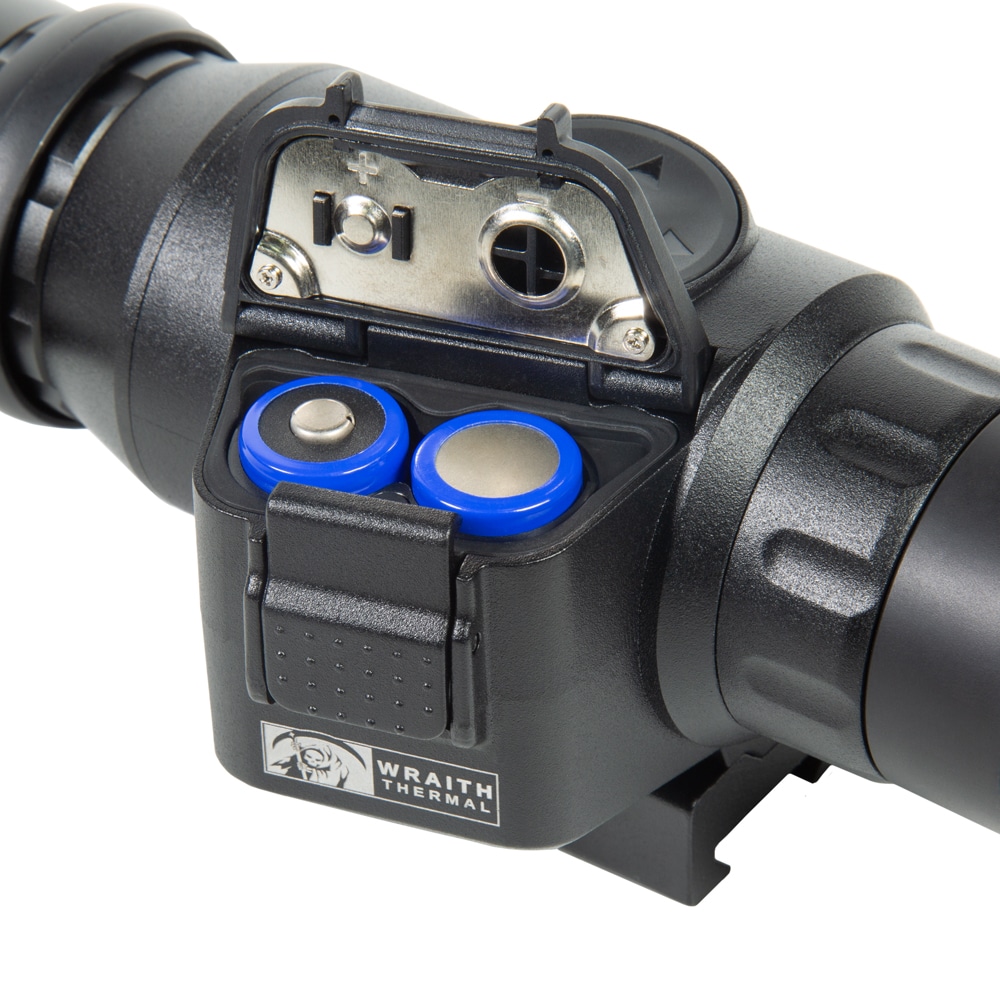

Battery type 2x CR123A
Battery life 3.5Hrs Video Mode/ 4.4Hrs Preview Mode
External Power Supply 5V via USB
Physical & operational characteristics
Body Material Aluminum
Accessory rail mount Picatinny
Length, in/mm (with flip up caps) 6.653/169
Width, in/mm 3.031/77
Height, in/mm 2.913/74
Weight, oz 19.3 oz
Operating Temperature Range -20C – 50C

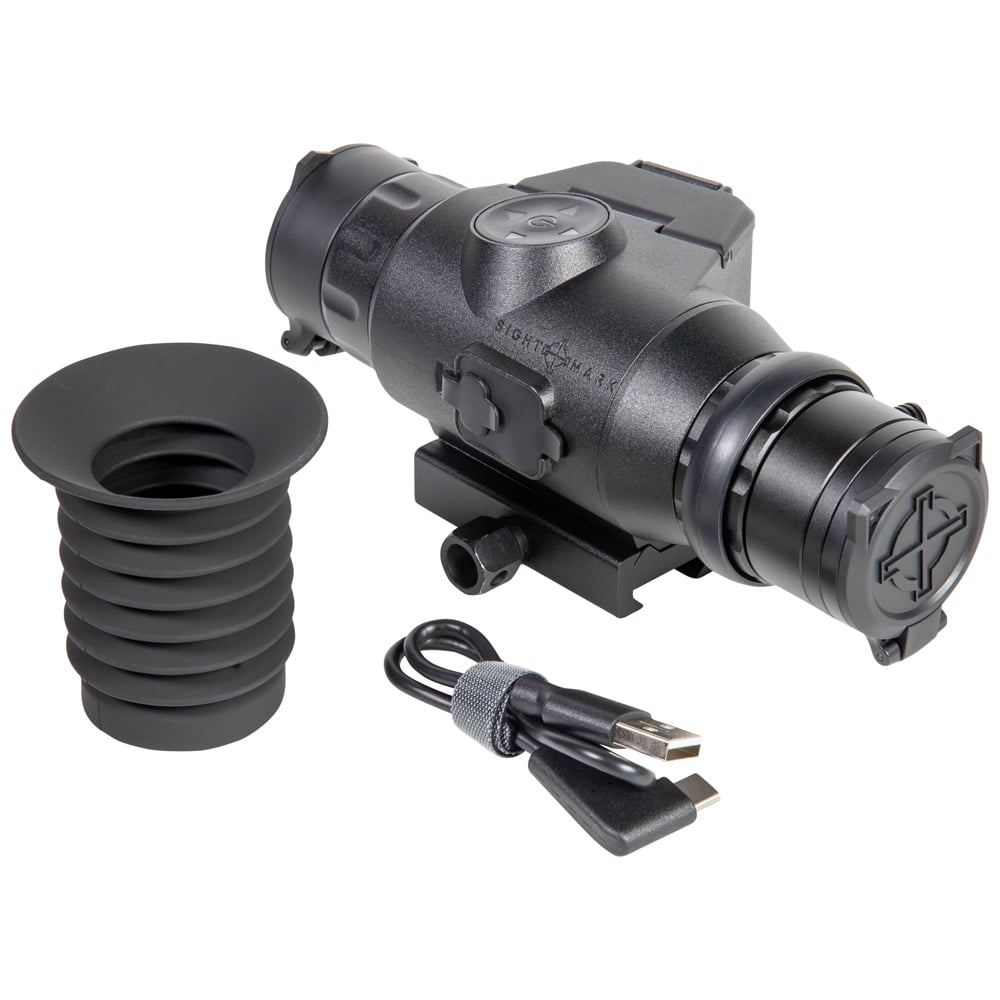

Flip-up Covers (Front and Back)
Removable Throw Lever
Rubber Eyecup
2x CR123A
USB Cable
Features Benefits
384×288 Thermal Resolution Enhanced algorithms create crisp image quality
Lightweight and Compact Reduces overall firearm weight
OLED Display Rich color and cold temperature operation
5 Color Palettes (White Hot, Black Hot, Green Hot, Rainbow, Magenta) Various modes for improved contrast for various scenarios/preferences
9 Reticle Colors Creates contrast between reticle and object for quicker aiming
10 Reticles Multiple reticles for preferences from minimalist design to complex for holdovers
5 Weapon Profiles Ability to hold multiple zeroes for different bullet grains or weapons
Built-in Recording w/ Sound Relive or share the experience with sound

Additional information

Weight 6 lbs
Dimensions 18 × 14 × 12 in
NS10,000 Battery Mount

Pouch, Picatinny Rail

Extension Mount

No Thanks, NightSnipe Sightmark Wraith Bolt Action / AR – Extension Mount
